Electrical Signal (SOHC)

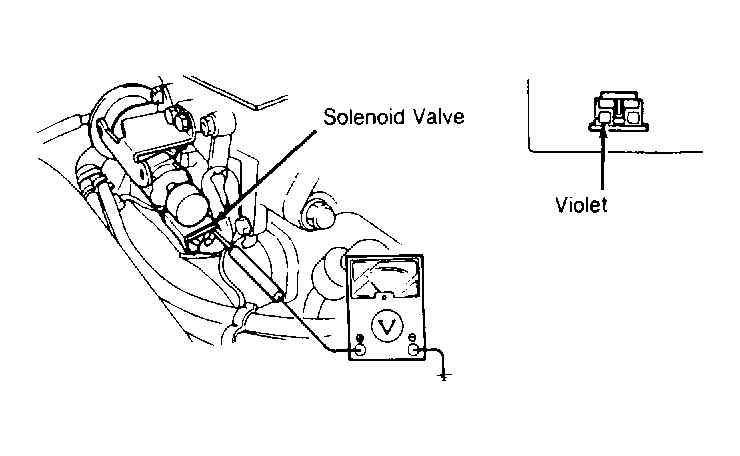

Connect voltmeter to Violet terminal of solenoid valve. See Figure . Ensure voltmeter reading is within specifications throughout RPM range. Replace solenoid valve if not within specifications. See VRIS RPM VOLTAGE SPECIFICATIONS (SOHC) table.
VRIS RPM VOLTAGE SPECIFICATIONS (SOHC)
| Engine Speed | Voltmeter |
|---|---|
| Less Than 3700 RPM | Approx. 12V |
| 3700-5750 RPM | Less Than 2.0V |
| Greater Than 5750 RPM | Approx. 12V |
