Steering System - Electronic Power: Testing: Notes
NOTE:

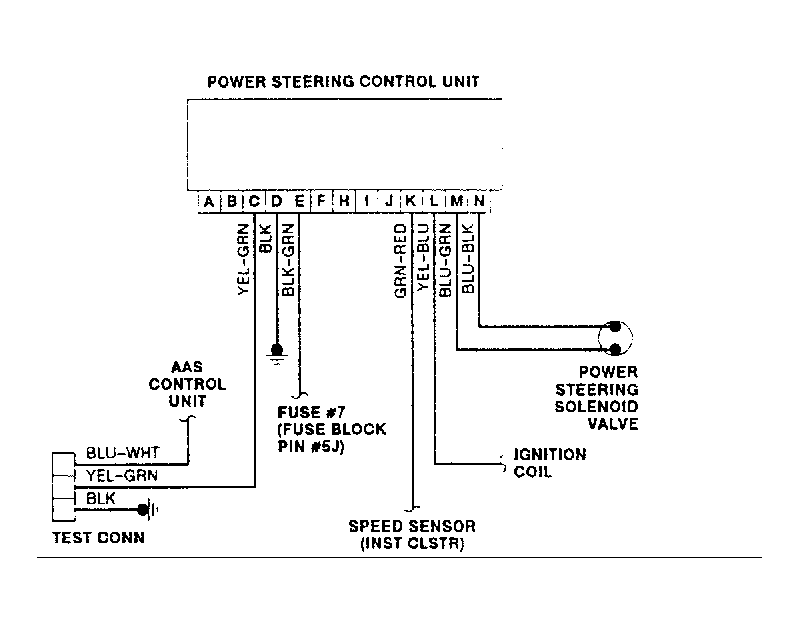

See Figure
-12 for wiring diagrams. For additional wiring diagrams, see appropriate ELECTRONIC SUSPENSION article in the SUSPENSION Section or chassis wiring diagrams in the WIRING DIAGRAMS Section.
DIAGNOSTIC & FLOW CHARTS DIRECTORY
| Application | Fig. No. | |
|---|---|---|
| Diagnostic Charts | ||
| MX-6 & 626 | 6 & 7 | |
| RX7 | 4 | |
| 929 | 5 | |
| Flow Charts | ||
| MX-6 & 626 | 8 & 9 | |
