Priming Oil System

Disconnect igniter electrical connector. Crank engine for 20 seconds. Reconnect igniter electrical connector. Start engine and operate at idle for 30 seconds. Turn off engine. Disconnect negative battery cable. Depress and hold brake pedal for at least 5 seconds to clear fault code.

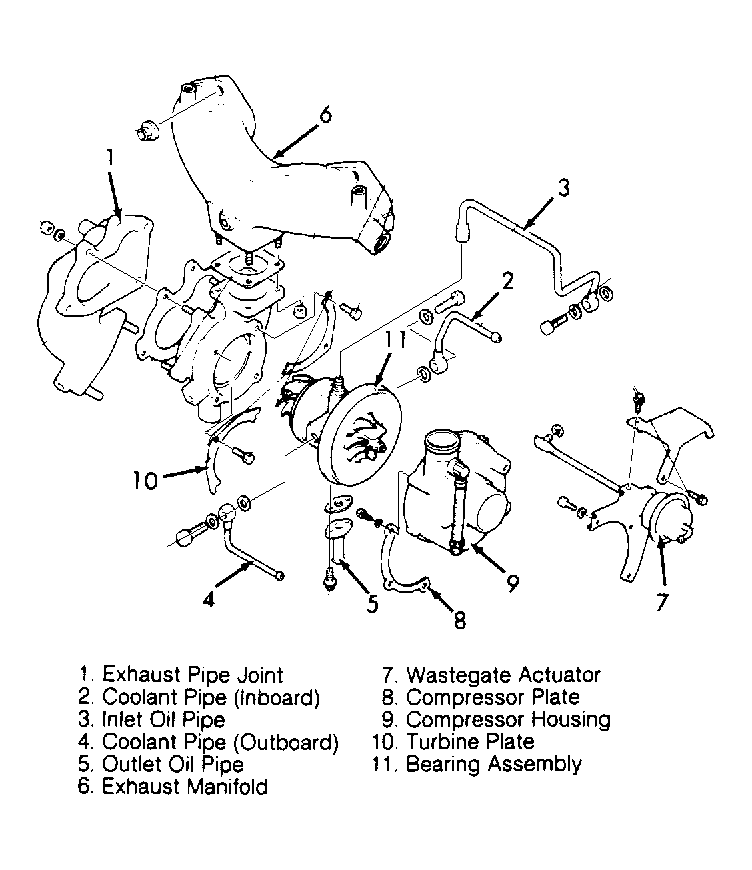

Fig 1: Exploded View of Turbocharger (MX-6 & 626)

Courtesy of MAZDA MOTORS CORP.

Fig 2: Marking Turbocharger Before Disassembly (MX-6 & 626)

Courtesy of MAZDA MOTORS CORP.

Fig 3: Installing Turbine Plates to Prevent Heat Distortion (MX-6 & 626)

Courtesy of MAZDA MOTORS CORP.
