Wiring Diagrams

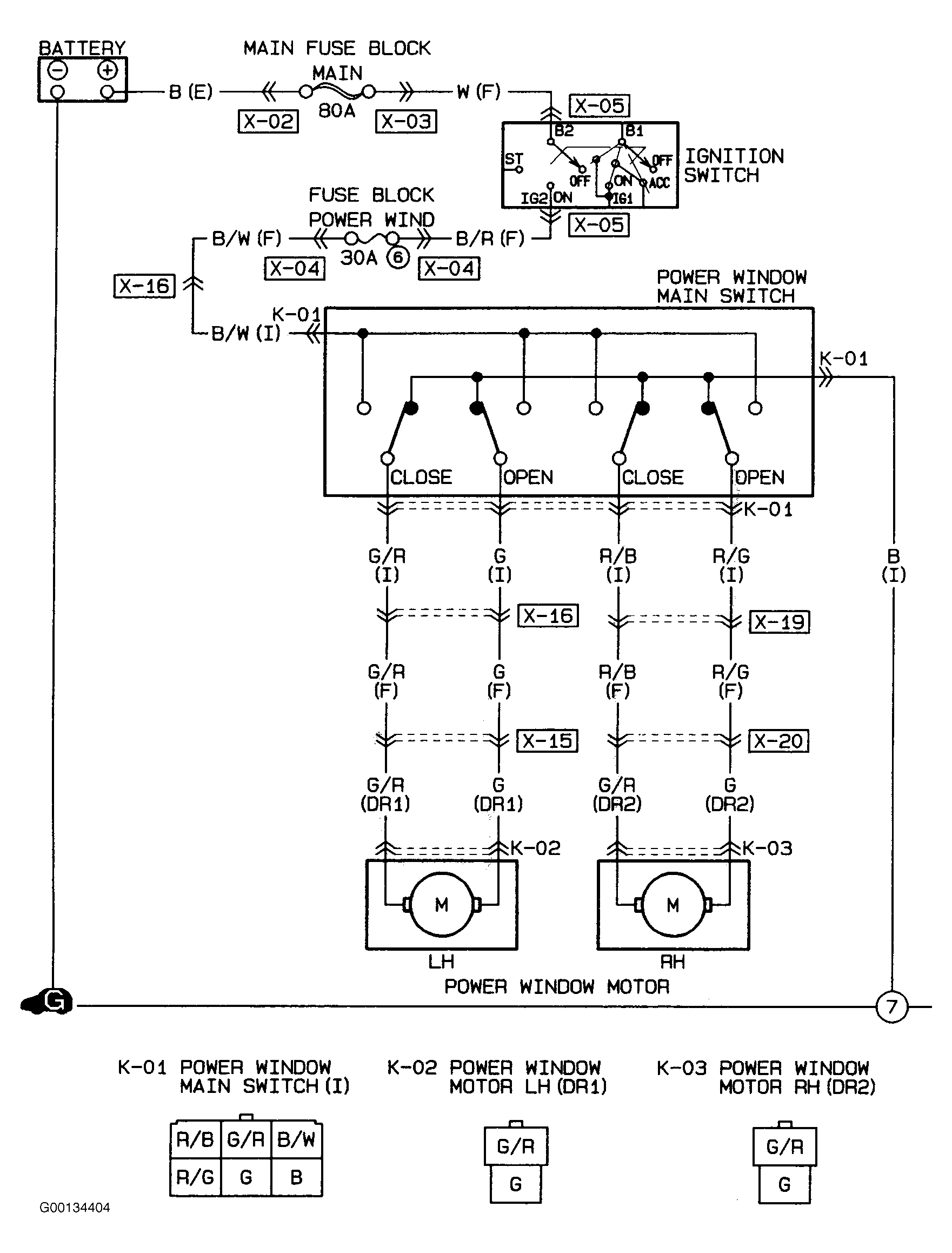

Fig 1: Power Windows System Wiring Diagram (1990-92 MX-5 Miata)

G00134404

Courtesy of MAZDA MOTORS CORP.
