Shift Speed Charts

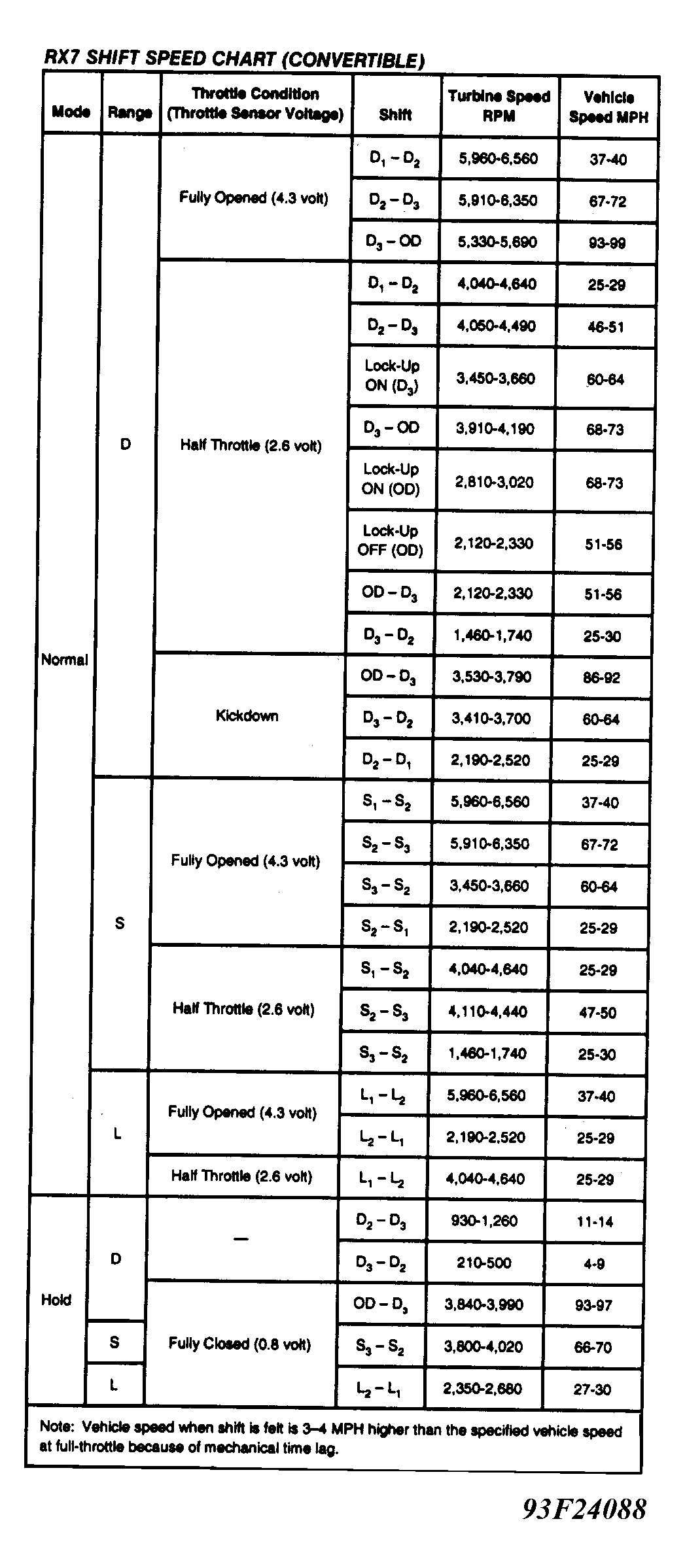

Fig 1: Shift Speed Chart - RX7 Convertible
G93F24088Courtesy of MAZDA MOTORS CORP.

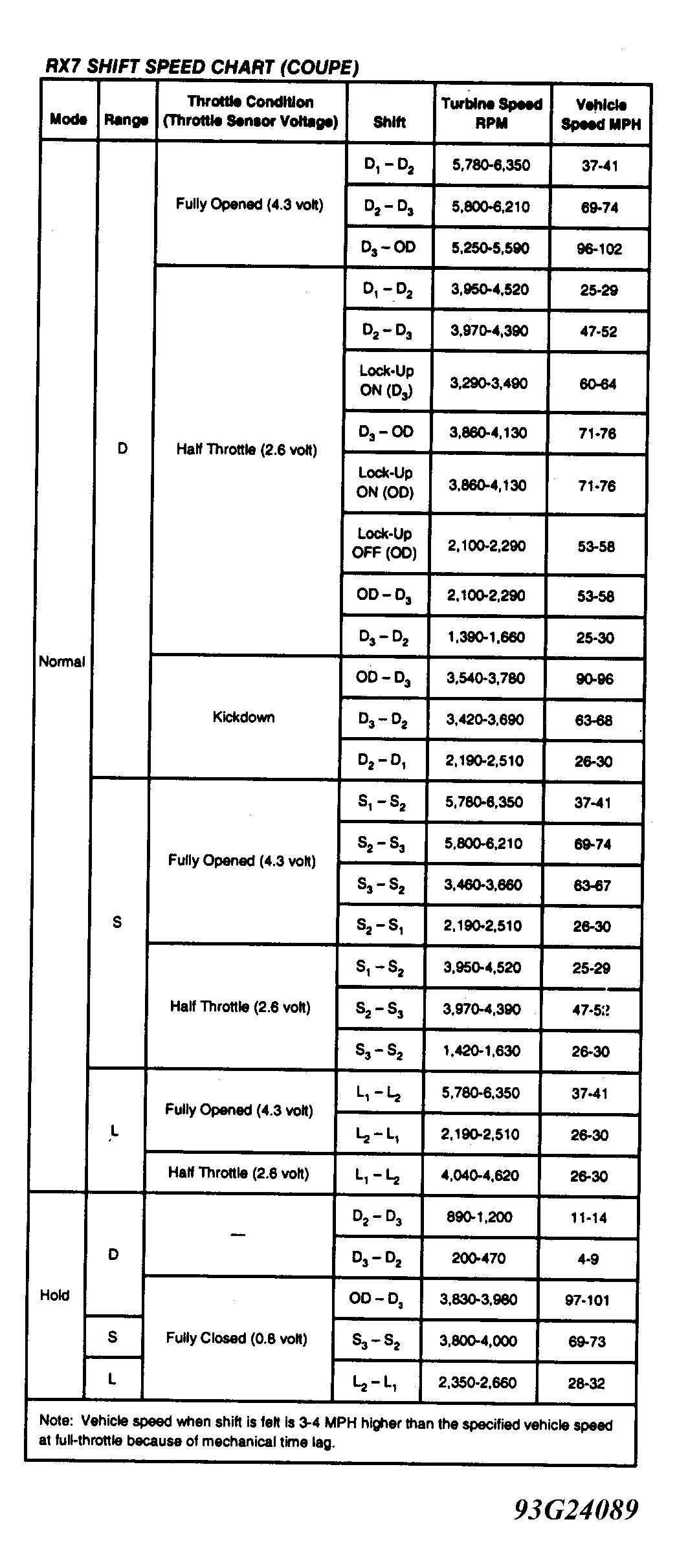

Fig 2: Shift Speed Chart - RX7 Coupe
G93G24089Courtesy of MAZDA MOTORS CORP.

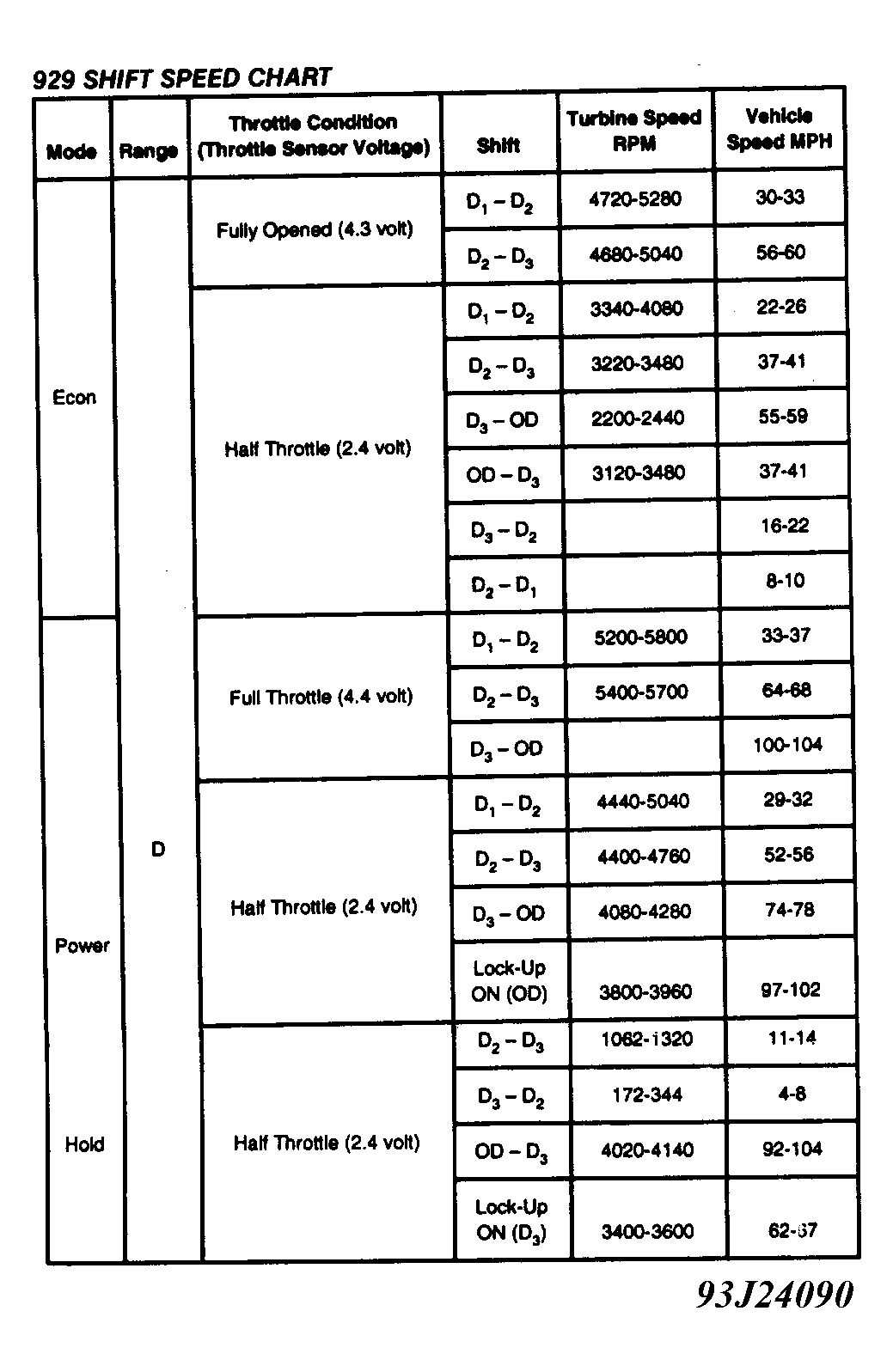

Fig 3: Shift Speed Chart - 929
G93J24090Courtesy of MAZDA MOTORS CORP.
