Continuity Check

Remove upper console plate. Disconnect MODE switch connector. Check continuity between terminals "A" and "C" in POWER position and terminals "A" and "B" in ECONOMY position. See Fig 1 . If continuity does not exist as described, replace switch.

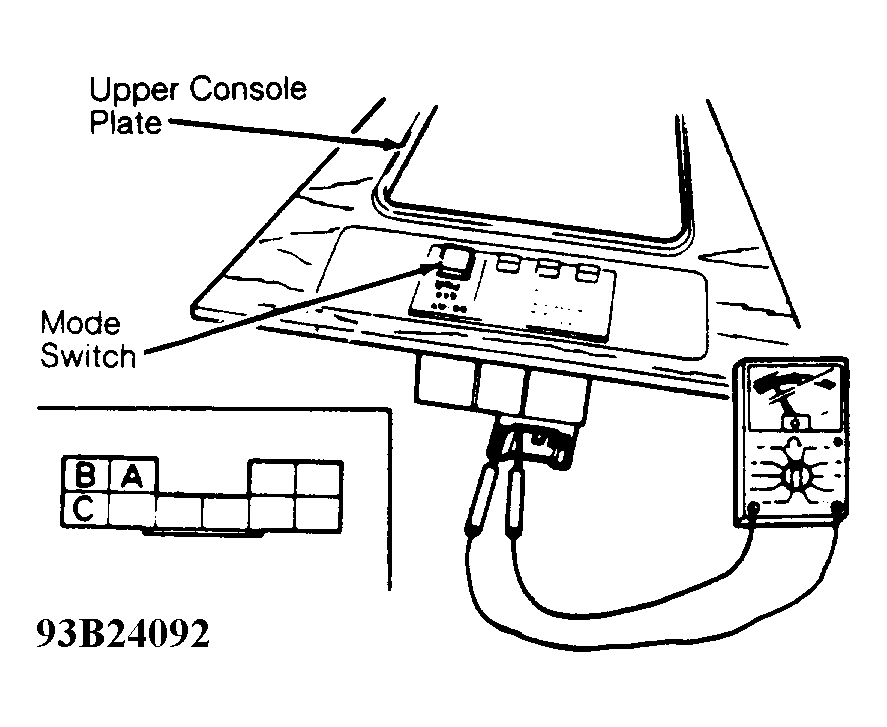

Fig 1: Testing Mode Switch

Courtesy of MAZDA MOTORS CORP.
