Mazda
>>
1990
>>
929 Base
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Controls - Pin Voltage Charts
>>
SOHC Charts
SOHC Charts

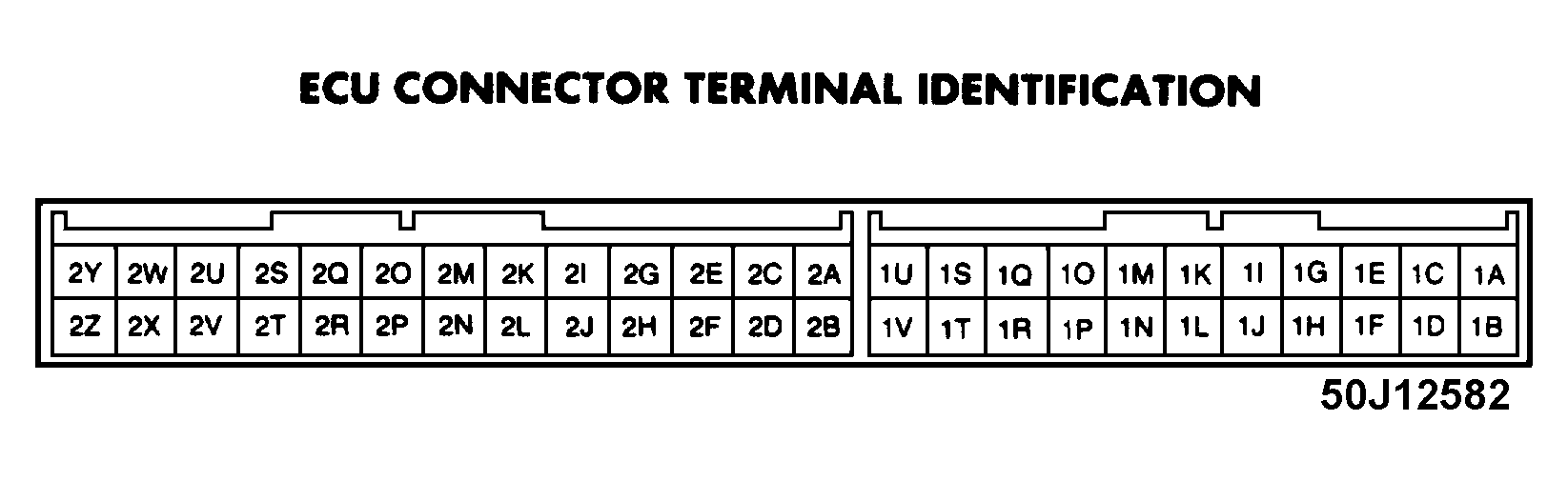

Fig 1: ECU Connector Terminal ID - SOHC
Courtesy of MAZDA MOTORS CORP.

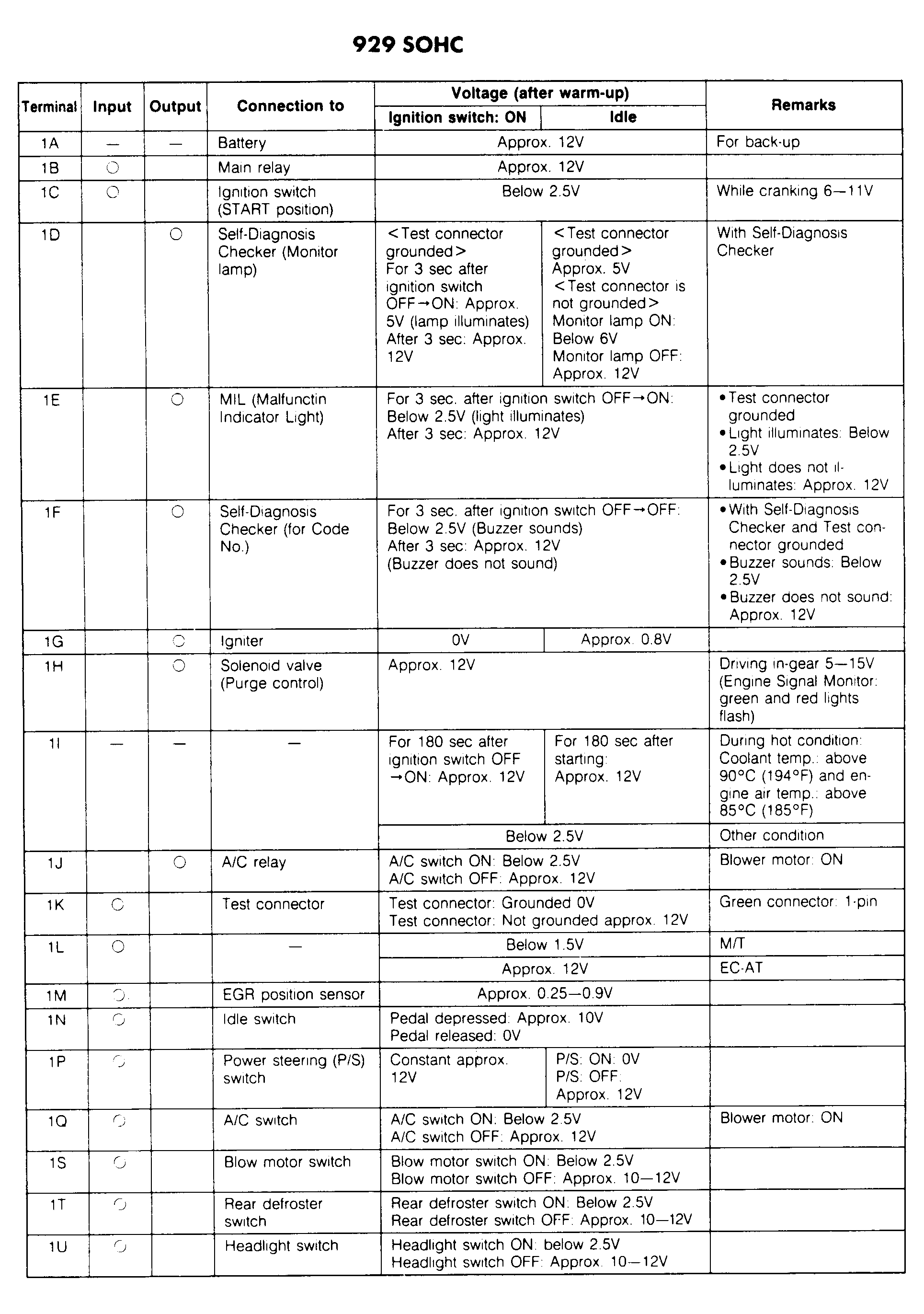

Fig 2: ECU Pin Voltage Chart - SOHC (1 of 3)
Courtesy of MAZDA MOTORS CORP.

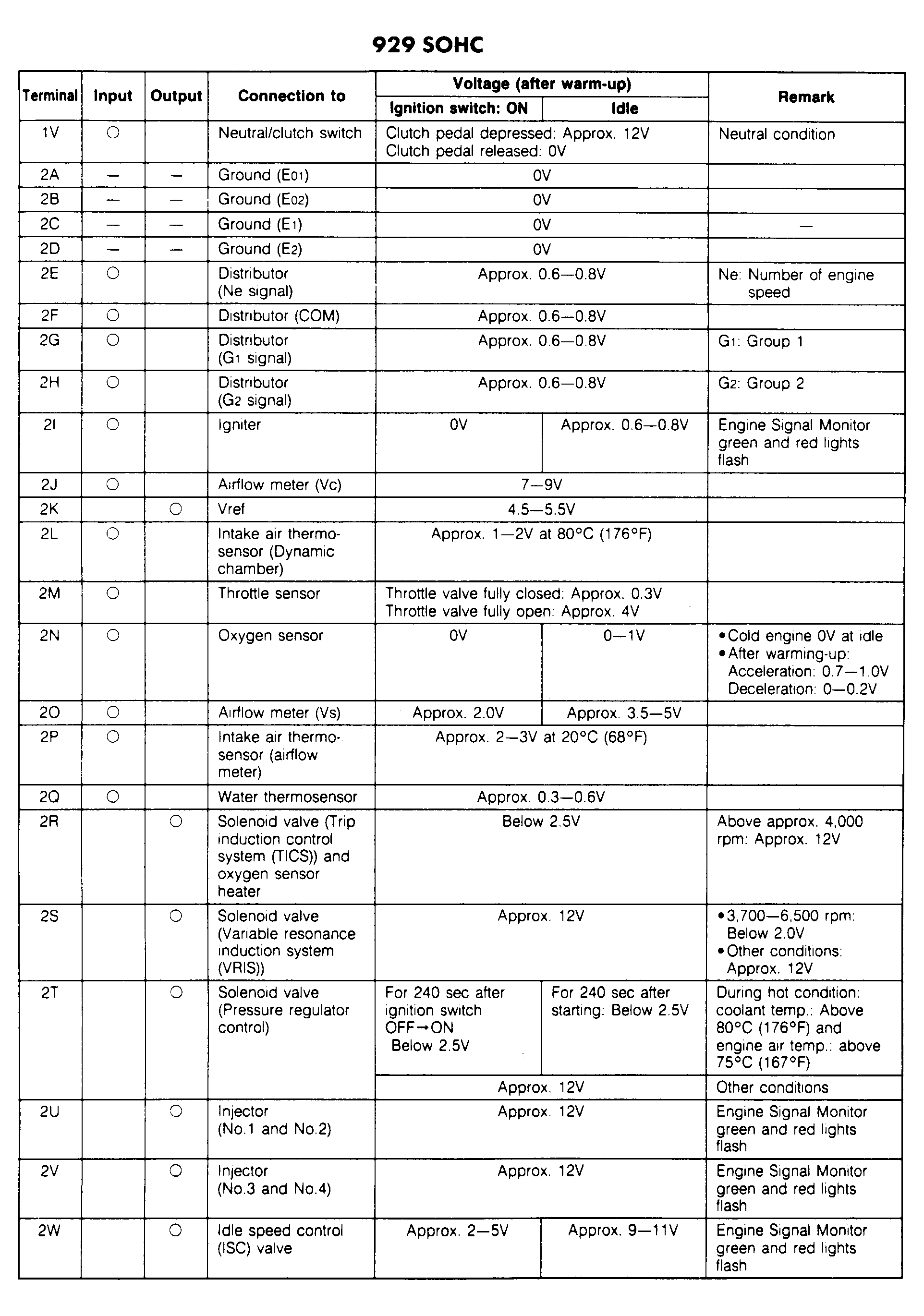

Fig 3: ECU Pin Voltage Chart - SOHC (2 of 3)
Courtesy of MAZDA MOTORS CORP.

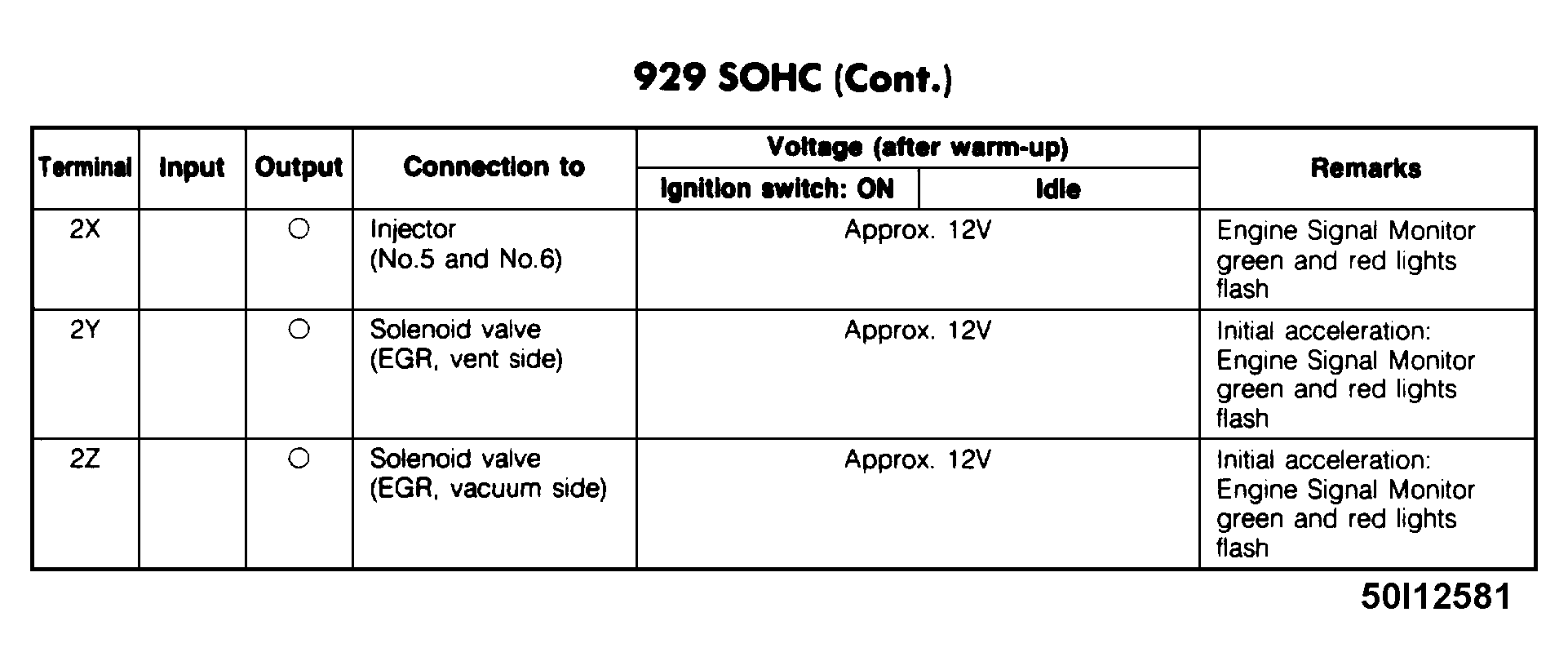

Fig 4: ECU Pin Voltage Chart - SOHC (3 of 3)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
