Code 25: Pressure Regulator Solenoid Valve

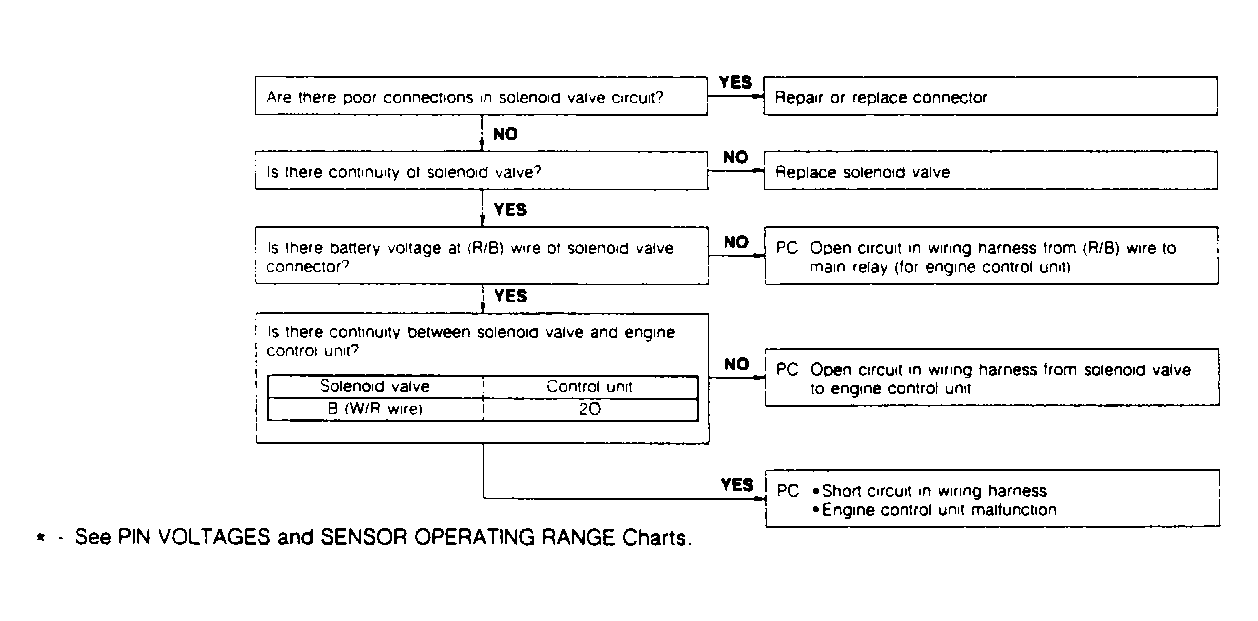

Fig 1: Code 25: Pressure Regulator Solenoid Valve Flow Chart (Turbo)

G90G21499

Courtesy of MAZDA MOTORS CORP.
