Code 25: Pressure Regulator Solenoid Valve

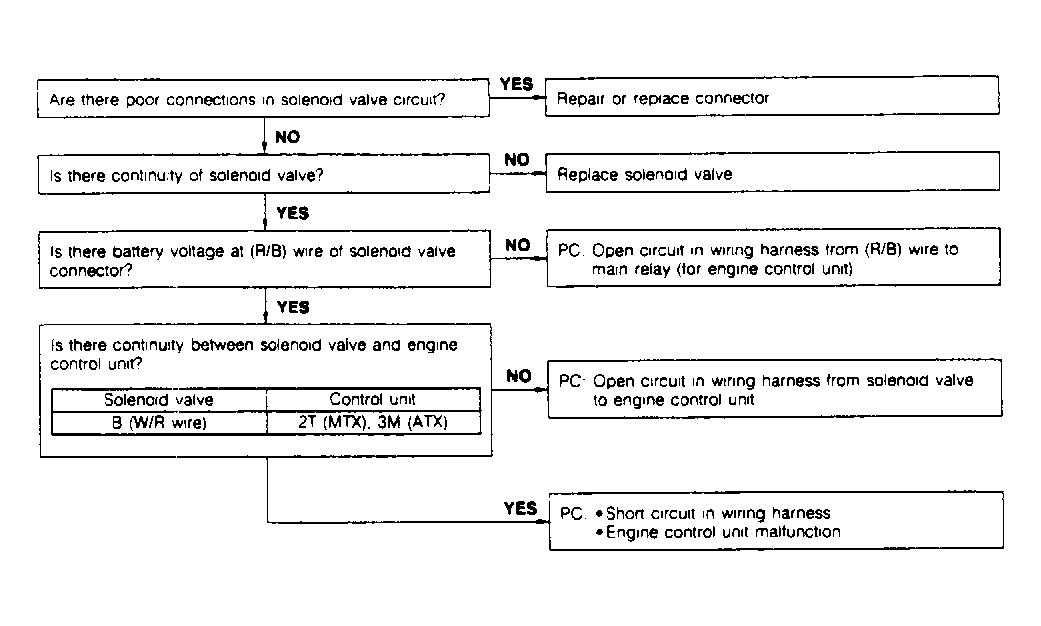

Fig 1: Code 25: Pressure Regulator Solenoid Valve Flow Chart (Non-Turbo)

G90F21480

Courtesy of MAZDA MOTORS CORP.
