Code 26: Purge Solenoid Valve

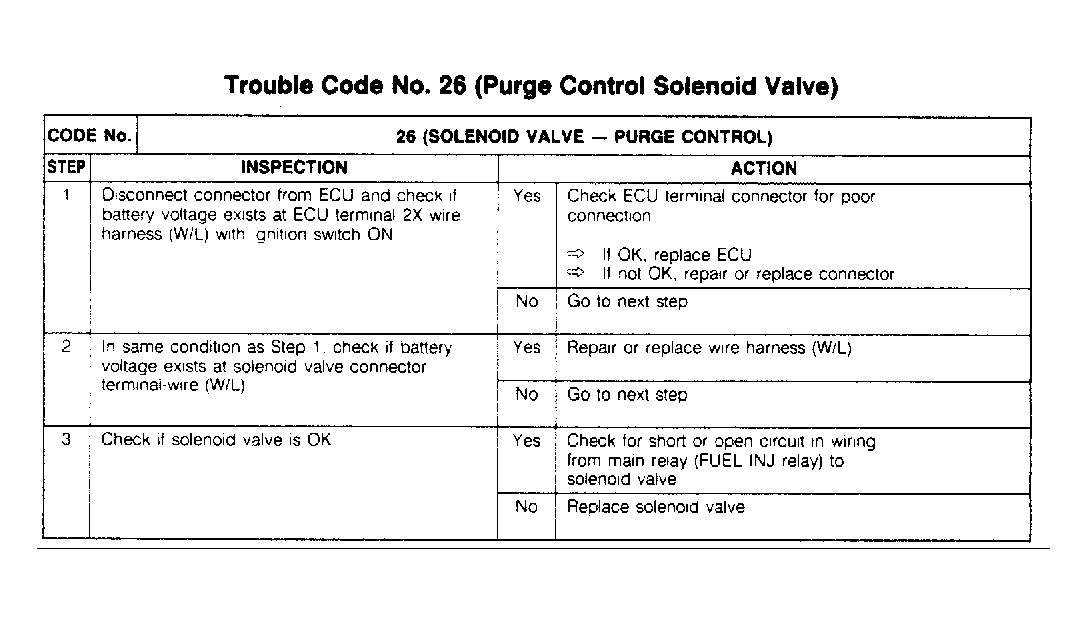

Fig 1: Code 26: Purge Solenoid Valve Chart

G90I21517

Courtesy of MAZDA MOTORS CORP.

Fig 2: Code 26: Purge Solenoid Valve Circuit Diagram

G90H21649

Courtesy of MAZDA MOTORS CORP.
