Blower Resistor Assembly

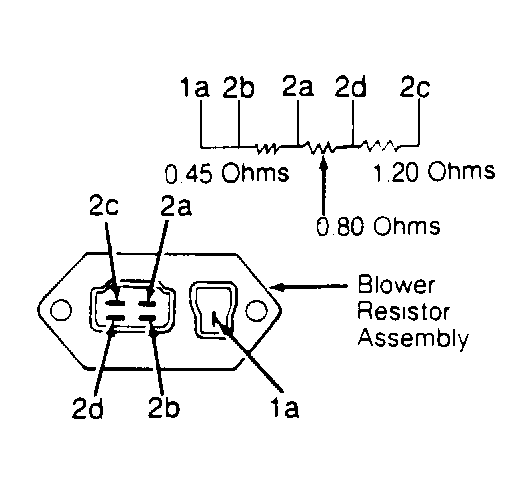

Remove resistor from underneath blower unit. Disconnect resistor and check continuity between each terminal. Maximum resistance should be 4 ohms. See Fig 1 . If resistance is not correct, replace resistor.
