Wiring Diagrams

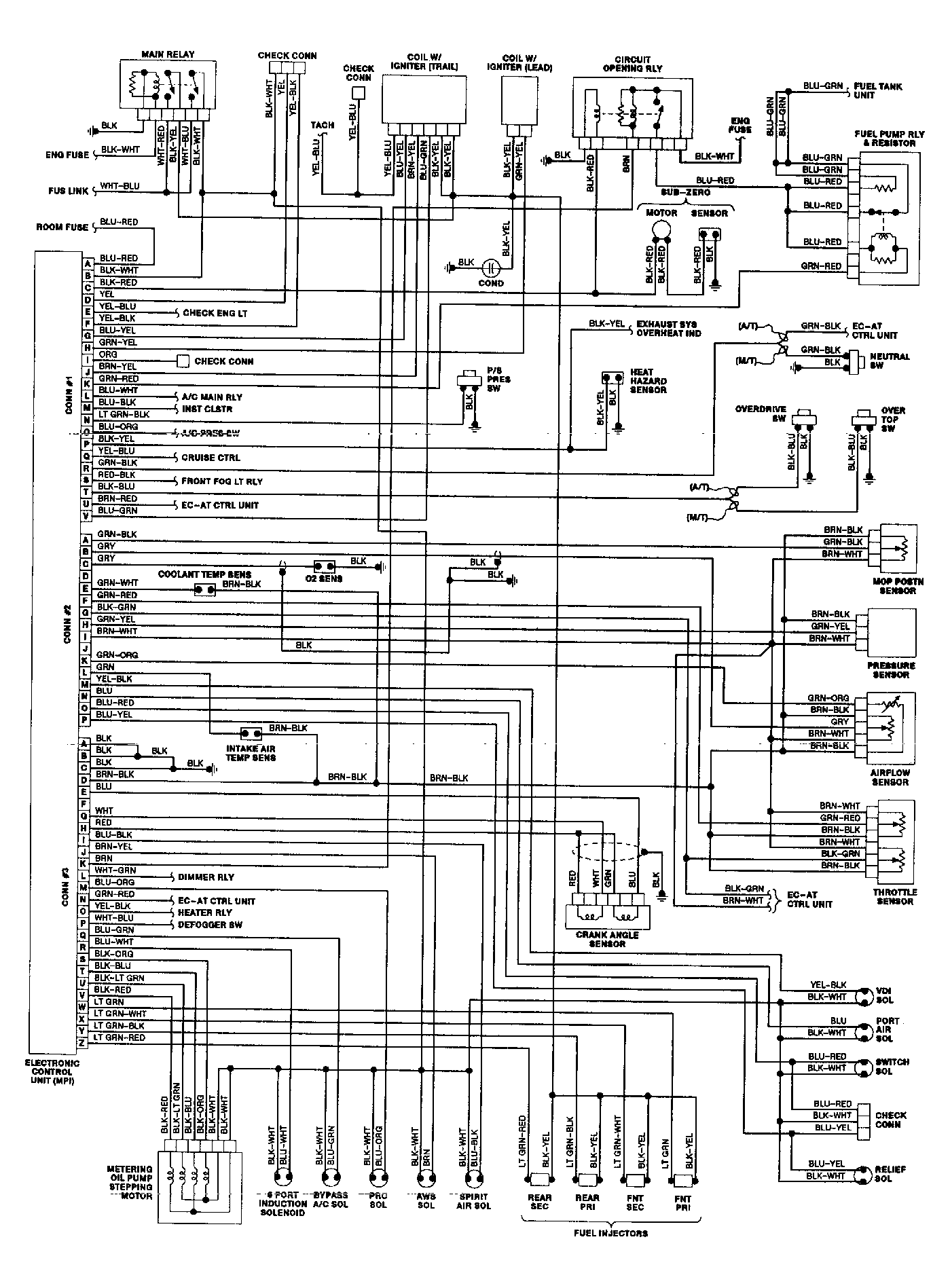

Fig 1: Mazda RX7 Non-Turbo Computerized Engine Control Wiring Diagram

G117844

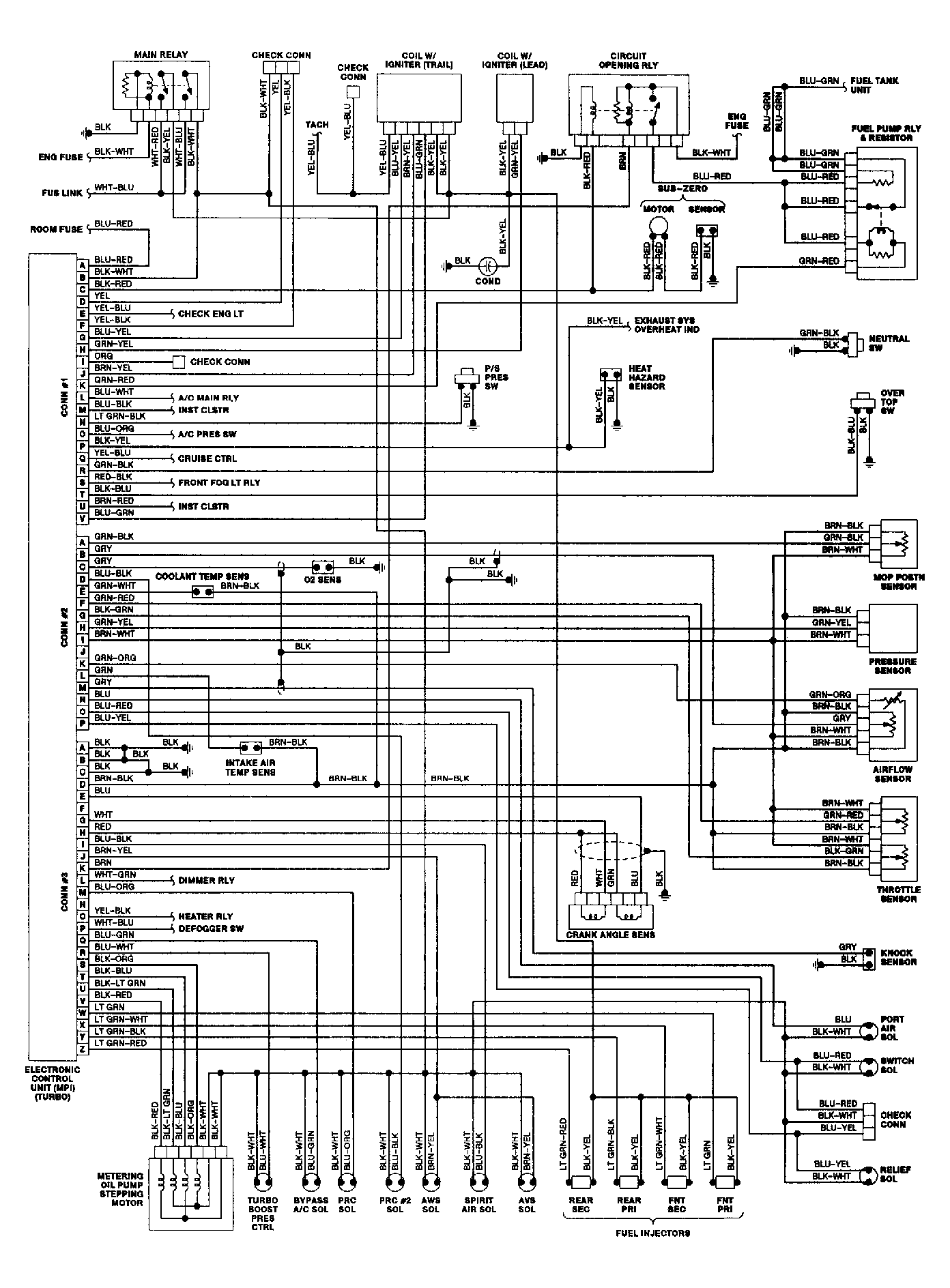

Fig 2: Mazda RX7 Turbo Computerized Engine Control Wiring Diagram

G117845
