No-Load Test

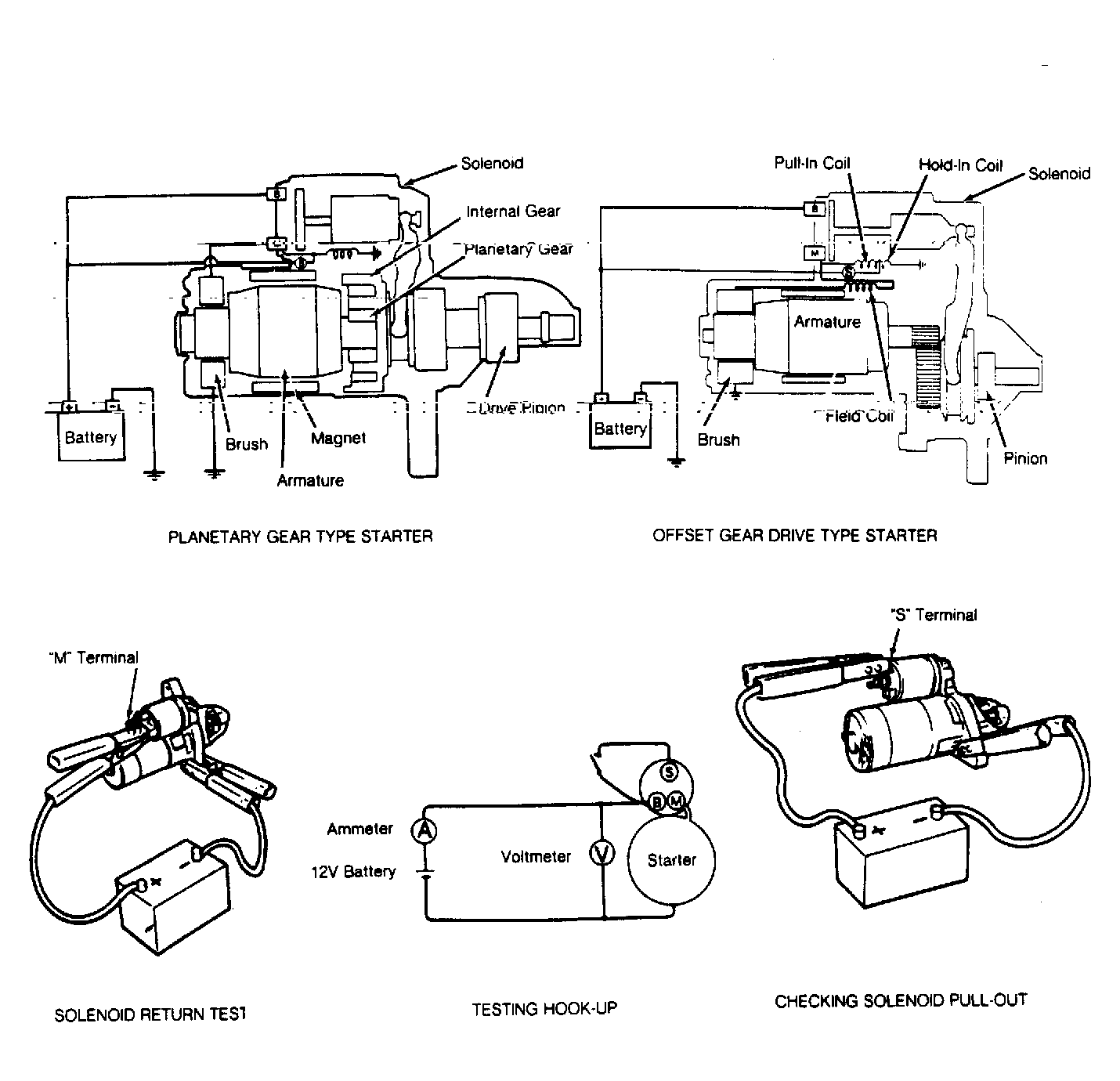

With starter on bench, connect a fully-charged 12-volt battery to starter. Connect a voltmeter and ammeter to starter circuit. See Fig 1. Check no load specification. See NO-LOAD TEST SPECIFICATIONS table. If not within specifications, disassemble and inspect starter components.
NO-LOAD TEST SPECIFICATIONS
| Application | Specification | |||
|---|---|---|---|---|
| B2200 (A/T) | ||||
| Voltage | 11.0 Volts | |||
| Current | 90 Amps (Maximum) | |||
| Shaft Speed | 3000 RPM (Minimum) | |||
| B2600i | ||||
| Voltage | 11.5 Volts | |||
| Current | 90 Amps (Maximum) | |||
| Shaft Speed | 4000 RPM (Minimum) | |||
| MPV | ||||
| 4-Cylinder Engine | ||||
| Standard (1.2kW) | ||||
| Voltage | 11.0 Volts | |||
| Current | 90 Amps (Maximum) | |||
| Shaft Speed | 4000 RPM (Minimum) | |||
| Heavy Duty (1.4kW) | ||||
| Voltage | 11.5 Volts | |||
| Current | 100 Amps (Maximum) | |||
| Shaft Speed | 3000 RPM (Minimum) | |||
| V6 Engine | ||||
| Standard (1.4kW) | ||||
| Voltage | 11.0 Volts | |||
| Current | 90 Amps (Maximum) | |||
| Shaft Speed | 3000 RPM (Minimum) | |||
| Heavy Duty (1.7kW) | ||||
| Voltage | 11.0 Volts | |||
| Current | 90 Amps (Maximum) | |||
| Shaft Speed | 2900 RPM (Minimum) | |||
| MX-6 & 626 | ||||
| Voltage | 11.0 Volts | |||
| Current | 90 Amps (Maximum) | |||
| Shaft Speed | 3000 RPM (Minimum) | |||
| RX7 | ||||
| Voltage | 11.0 Volts | |||
| Current | 90 Amps (Maximum) | |||
| Shaft Speed | 3000 RPM (Minimum) | |||
| 929 | ||||
| Voltage | 11.0 Volts | |||
| Current | 90 Amps (Maximum) | |||
| Shaft Speed | 2900 RPM (Minimum) | |||
NOTE:
Tests must be performed with starter assembled and field lead ("M") from starter disconnected at the solenoid.
CAUTION:
Do not engage starter solenoid for more than 10 seconds during testing or damage to coil winding may result.
