Wiring Diagrams

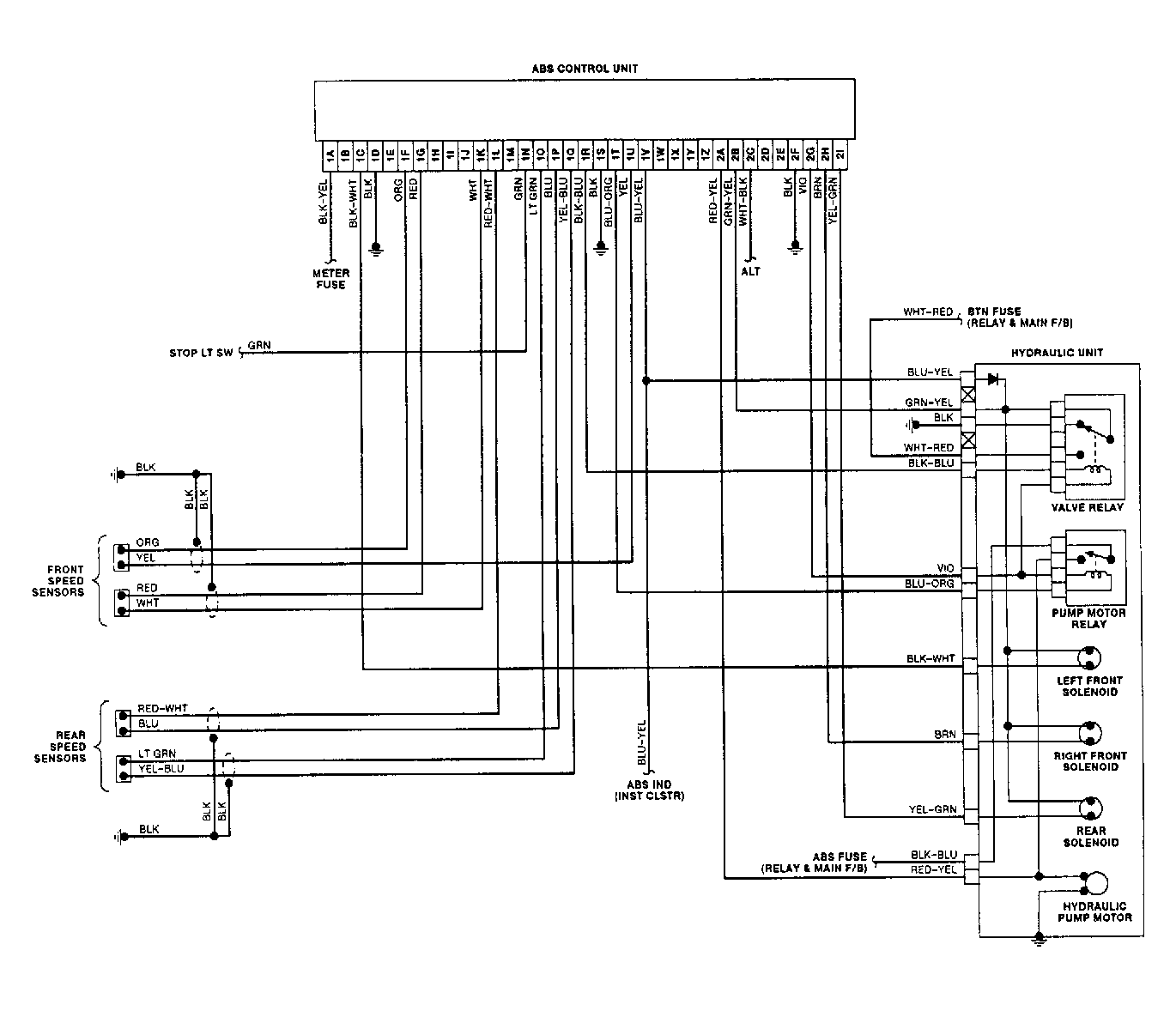

Fig 1: Anti-Lock Brake System Wiring Diagram (Miata)

G92E01054

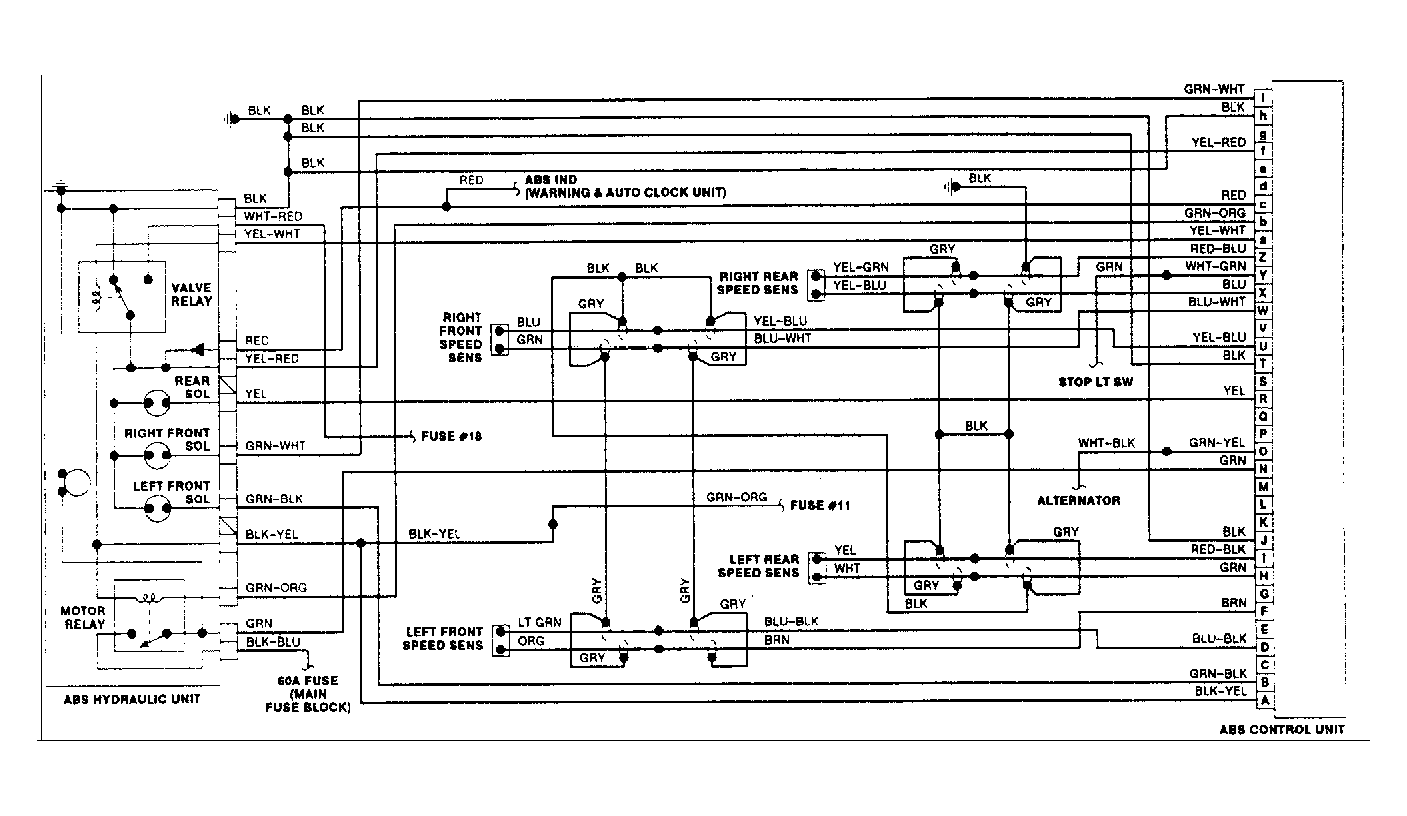

Fig 2: Anti-Lock Brake System Wiring Diagram (RX7)

G91D02109

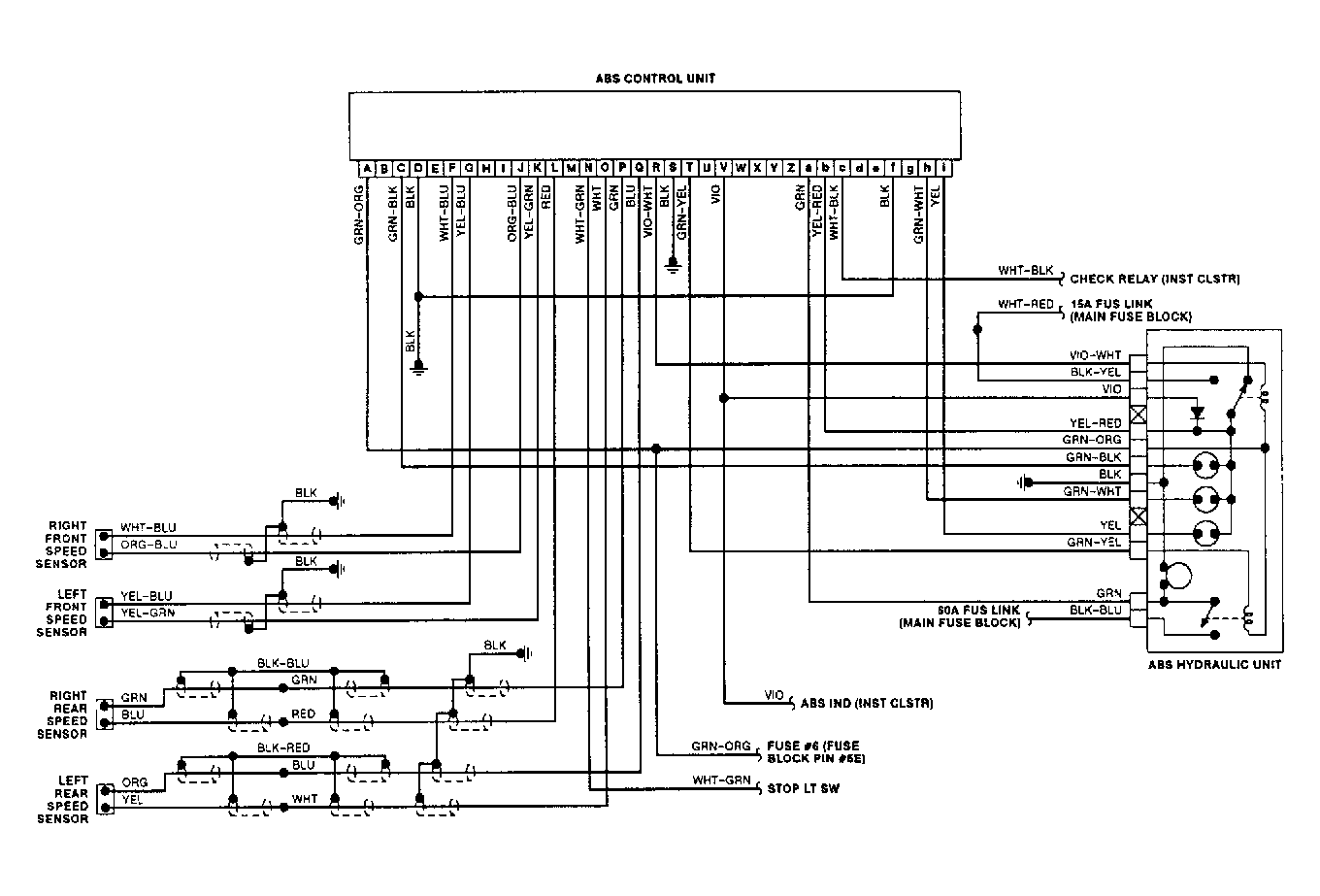

Fig 3: Anti-Lock Brake System Wiring Diagram (929)

G92H01060
