Service Indicator & Warning Lights: Notes

Inspect warning lights by turning on ignition with engine off and parking brake on. Check and repair any warning light that does not come on with ignition.

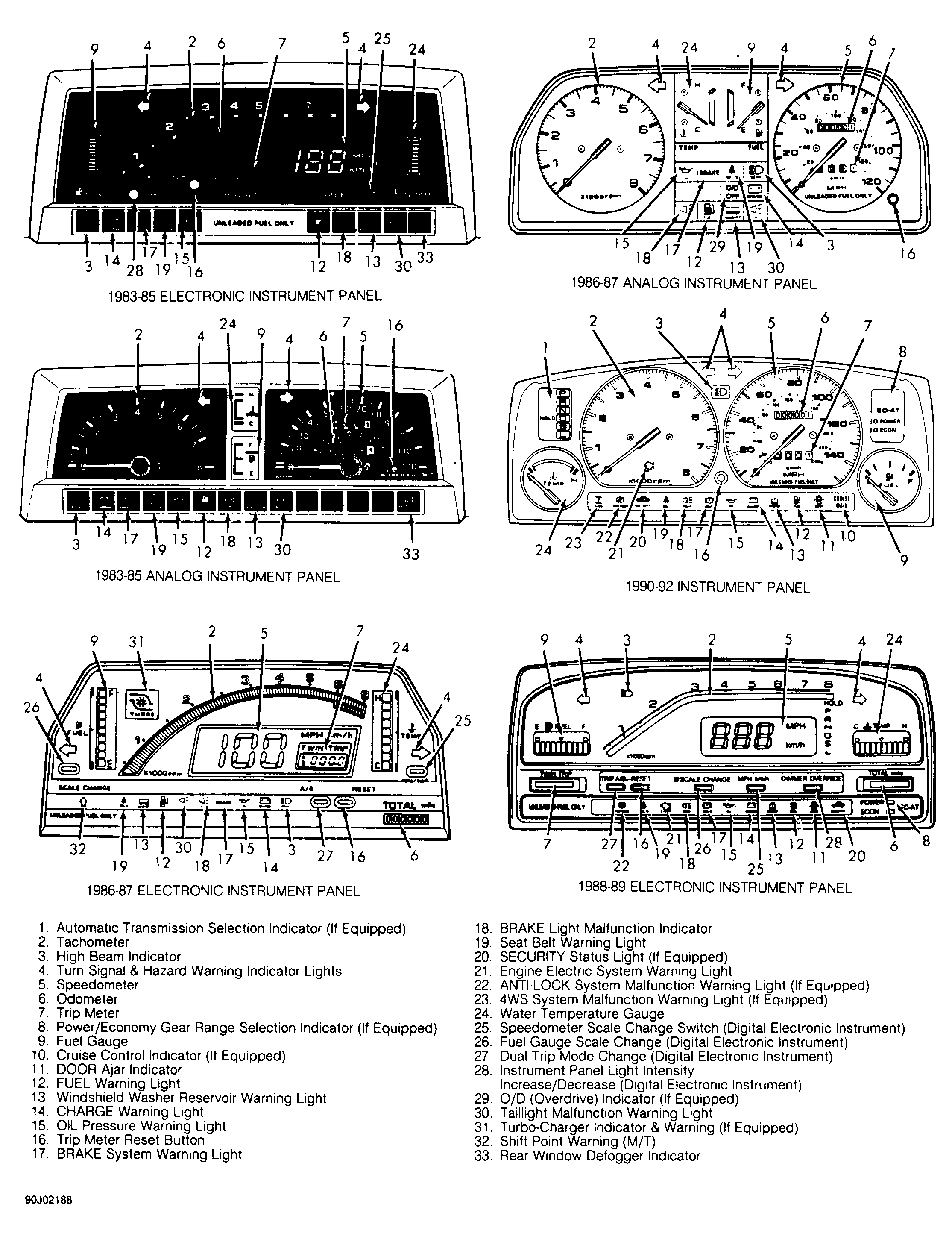

Fig 1: Dash Gauges & Warning Lights
G90J02188Courtesy of MAZDA MOTOR OF AMERICA INC.
