High Tension Wire Resistance

High tension wire resistance should not exceed 4900 ohms per foot.

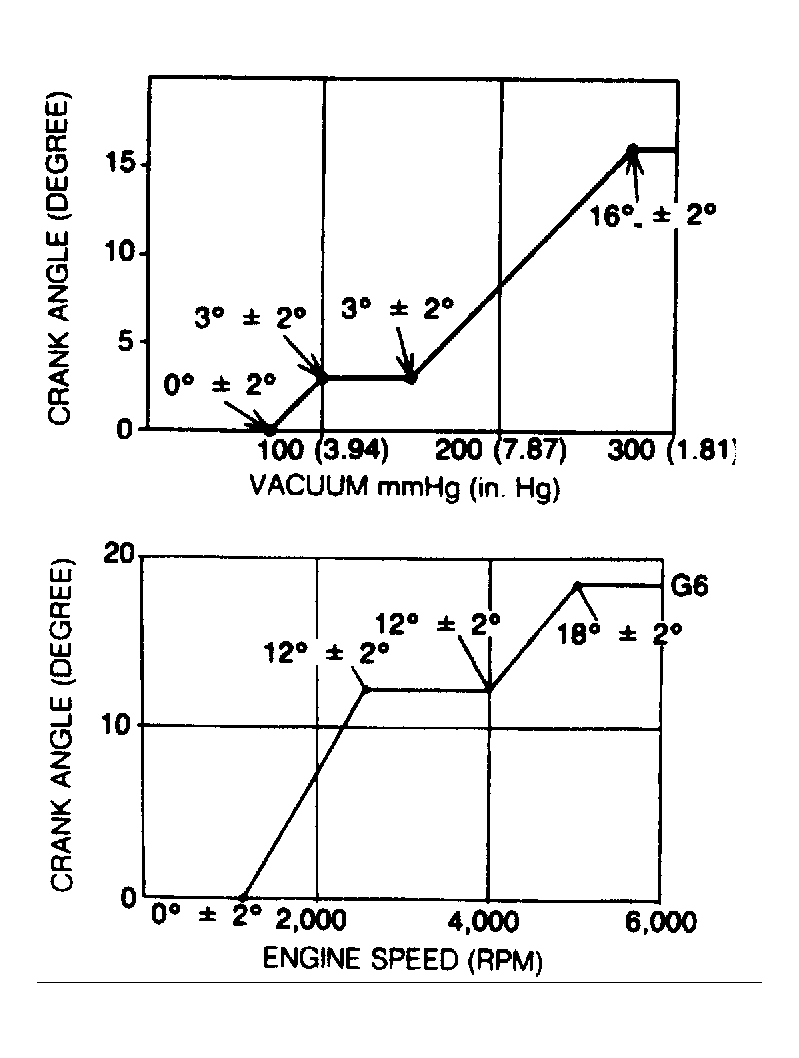

Fig 1: Ignition Advance Curve (B2200)

Courtesy of MAZDA MOTORS CORP.

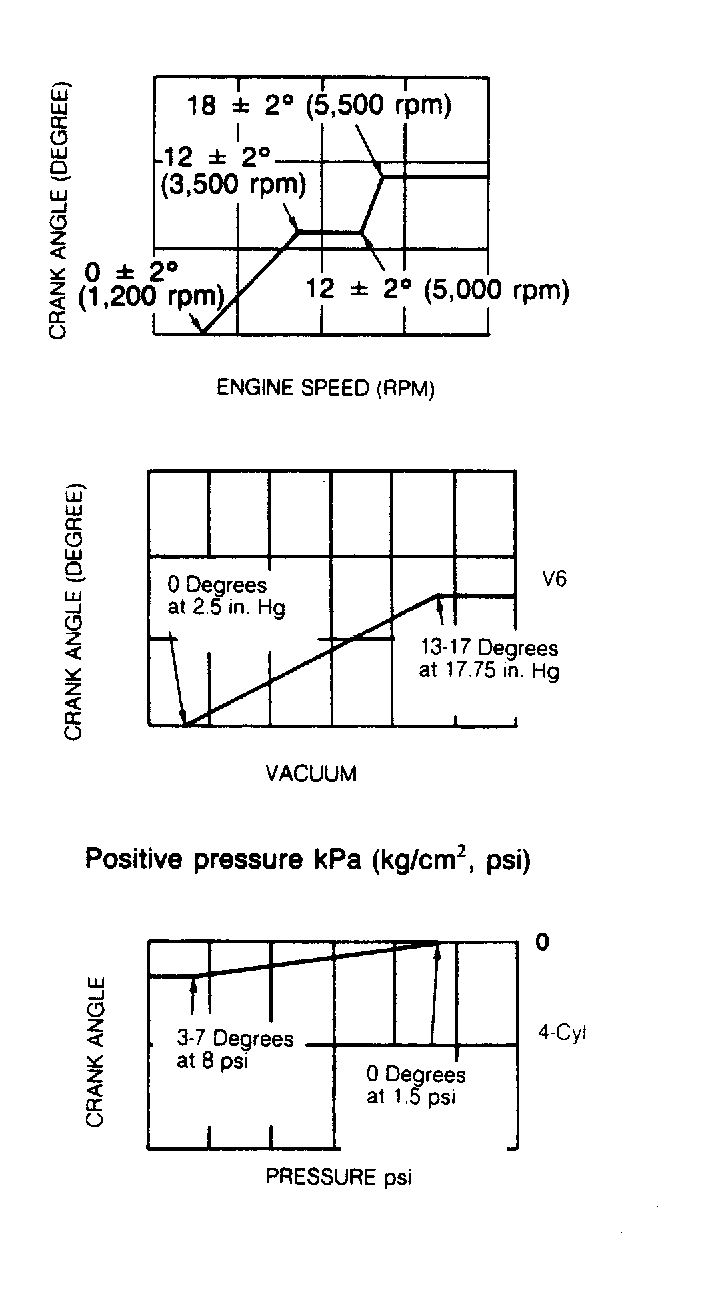

Fig 2: Ignition Advance Curve (B2600i)

Courtesy of MAZDA MOTORS CORP.

Fig 3: Ignition Advance Curve (MX-6 & 626 - Non-Turbo)

Courtesy of MAZDA MOTORS CORP.

Fig 4: Ignition Advance Curve (323 - Non-Turbo)

Courtesy of MAZDA MOTORS CORP.

Fig 5: Ignition Advance Curve (323 - Turbo)

Courtesy of MAZDA MOTORS CORP.
