Removal (323)

  1. Remove engine undercover. Drain engine coolant. Remove radiator. Remove intake air pipe and intake air hoses.
  2. Remove turbocharger heat insulators. Remove coolant hoses from turbocharger. Remove oil pipes from turbocharger.
  3. Loosen bolts securing turbocharger to bracket. Remove nuts attaching exhaust pipe to turbocharger. Remove nuts attaching turbocharger to exhaust manifold. Remove turbocharger.

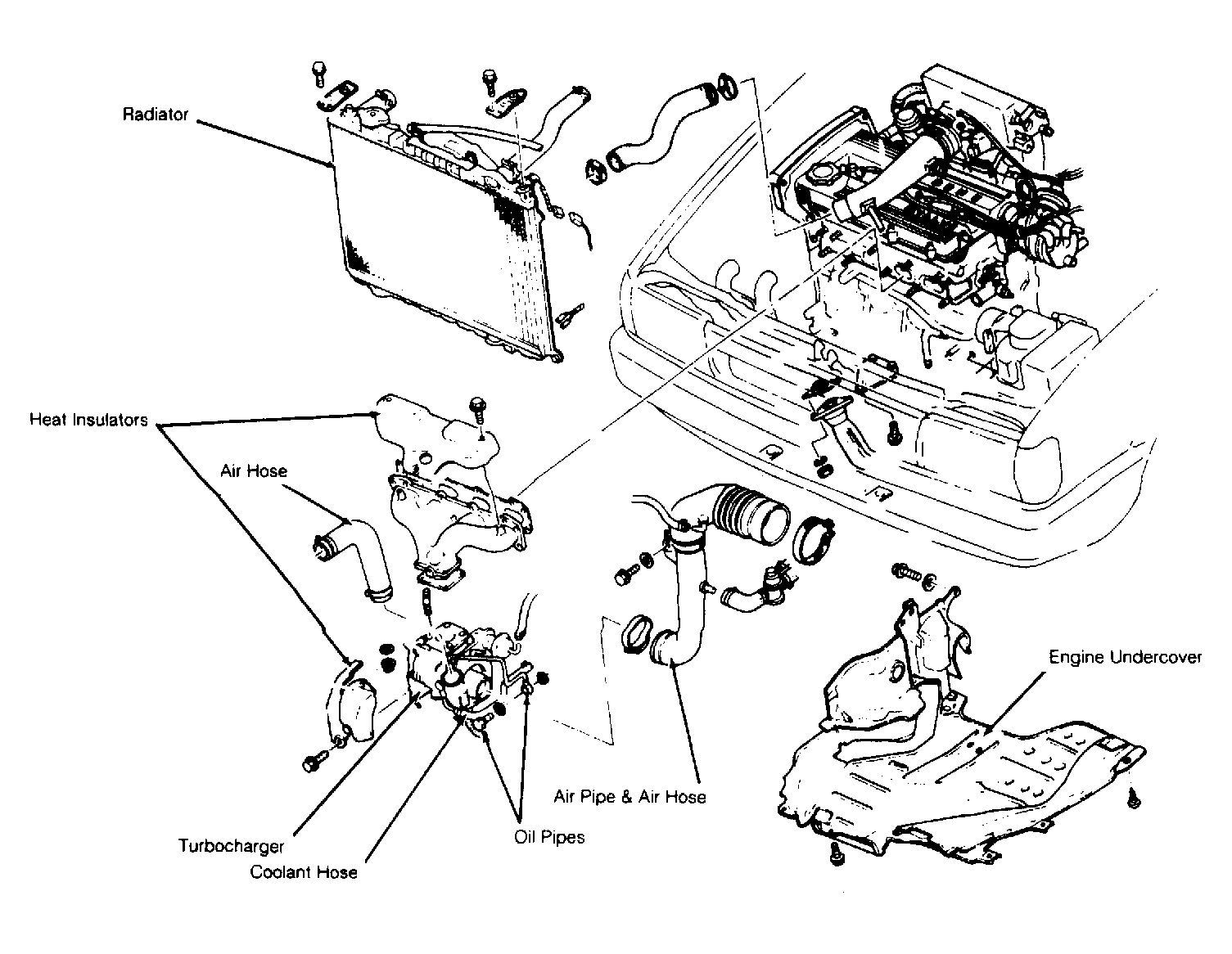

Fig 1: Exploded View of Turbocharging System (323)
G117880Courtesy of MAZDA MOTORS CORP.
