3.0L Engine: Installation

To install, reverse removal procedure using new gaskets. Tighten all mounting bolts to 20 ft. lbs. (25 N.m).

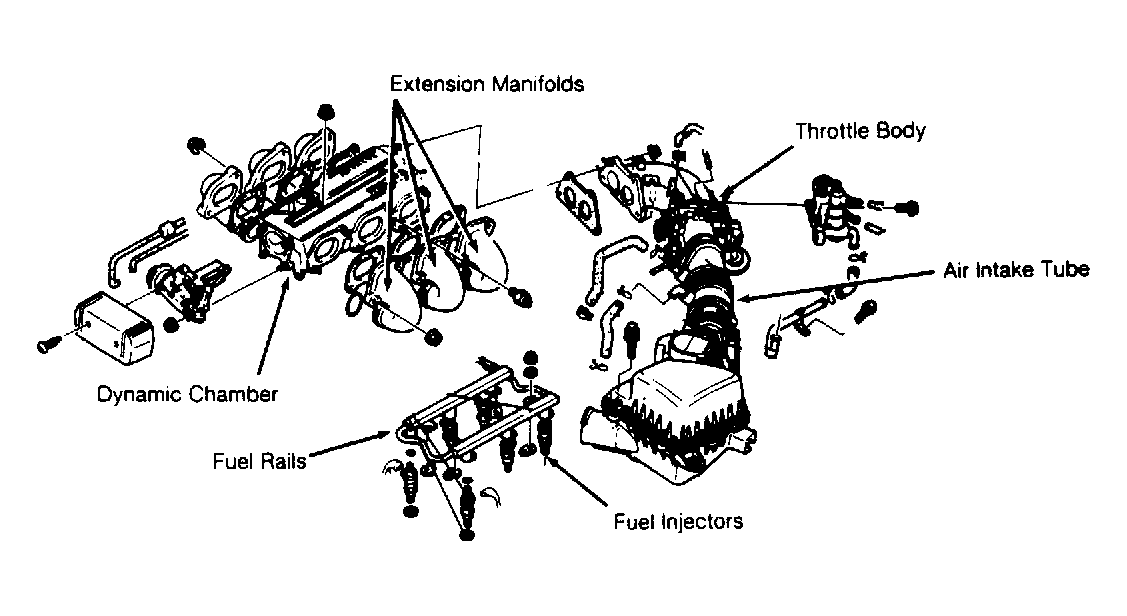

Fig 1: Exploded View of Upper Intake Manifold & Fuel Rails (3.0L)
G117879Courtesy of MAZDA MOTORS CORP.
