Steering Column: Reassembly
To reassemble, reverse disassembly procedure. Grease steering shaft, bushings and bearings. Always use new shear screws.

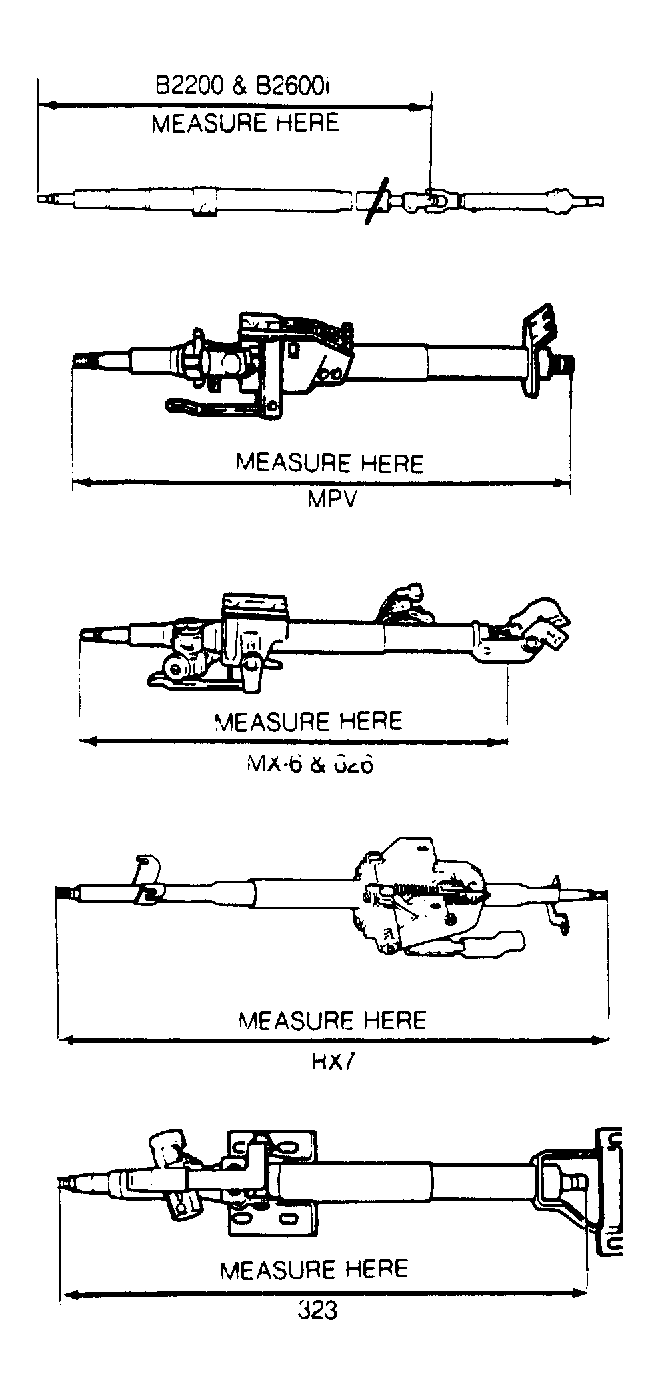

STEERING SHAFT DIMENSIONS
| Application |
Length In. (mm) |
| MPV |
24.05-24.17 (611.0-614.0) |
| 323 |
23.86-23.94 (606.0-608.0) |
Courtesy of MAZDA MOTORS CORP.
