323 Turbo Trouble Codes

Fig 1: Code No.1 - Ignition Pulse

G94781

Fig 2: Code No.3 - G Signal

G95514

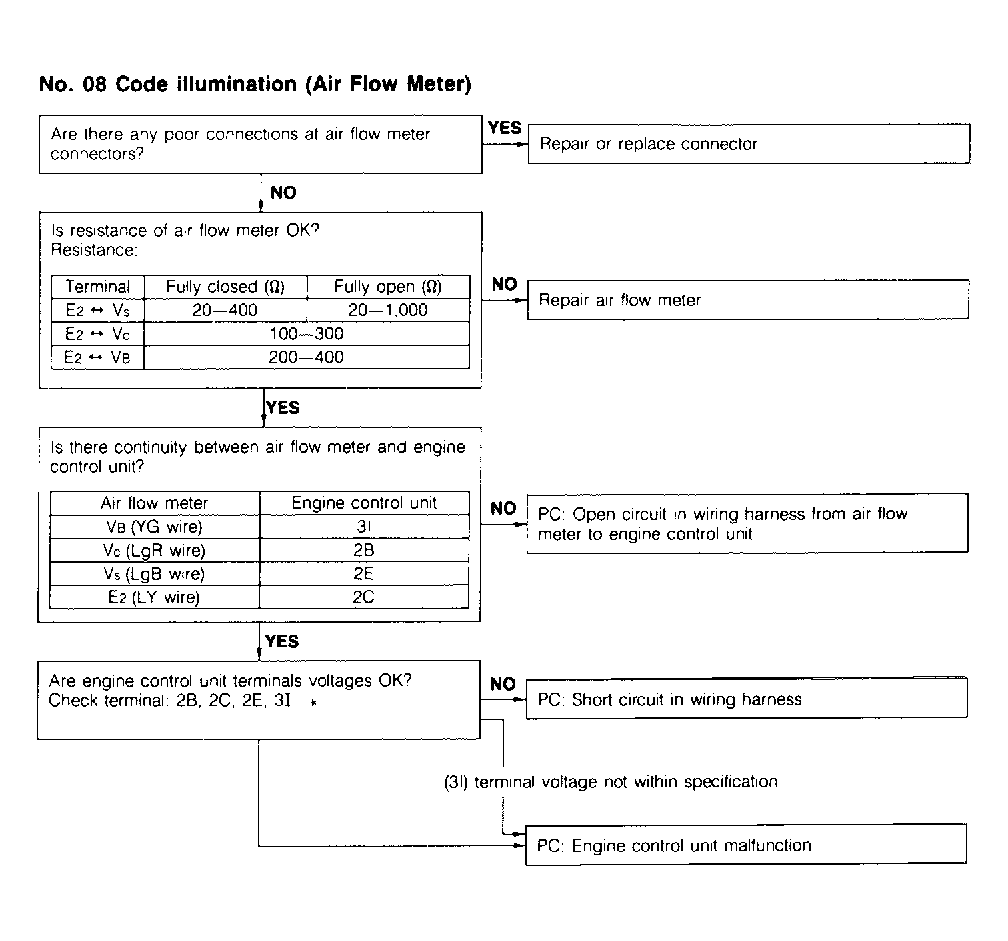

Fig 3: Code No.8 - Air Flow Meter

G95509

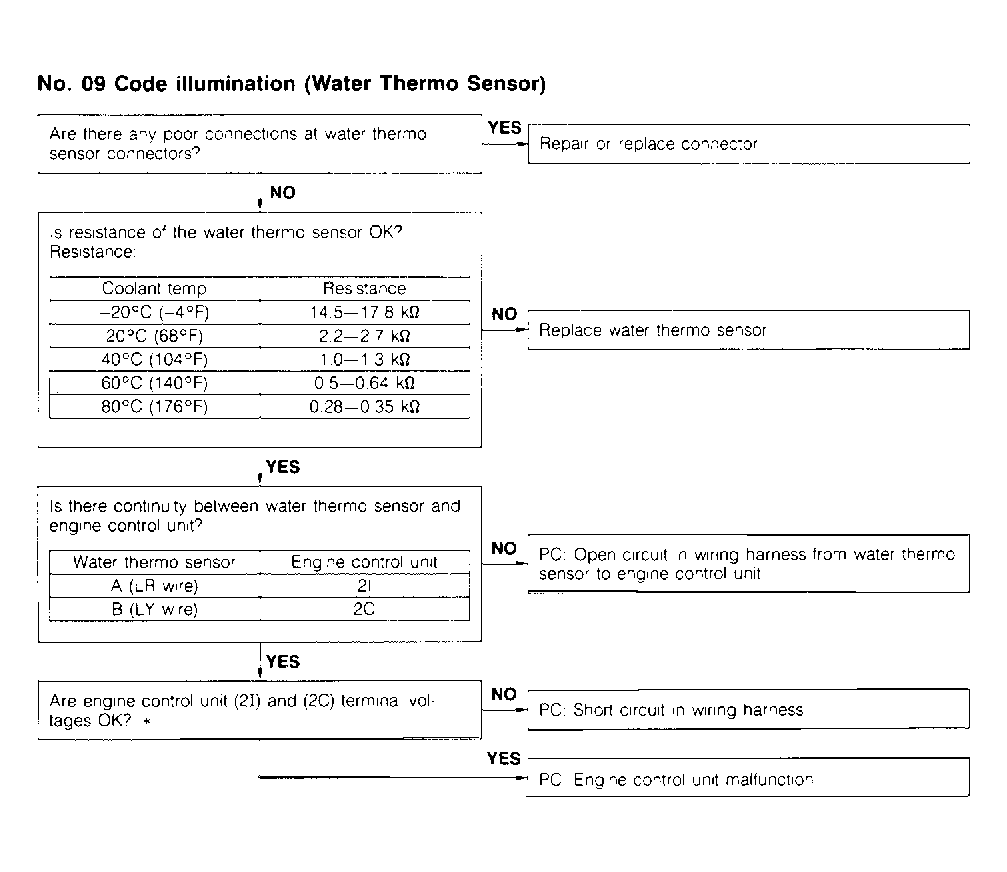

Fig 4: Code No.9 - Water Thermo Sensor

G94782

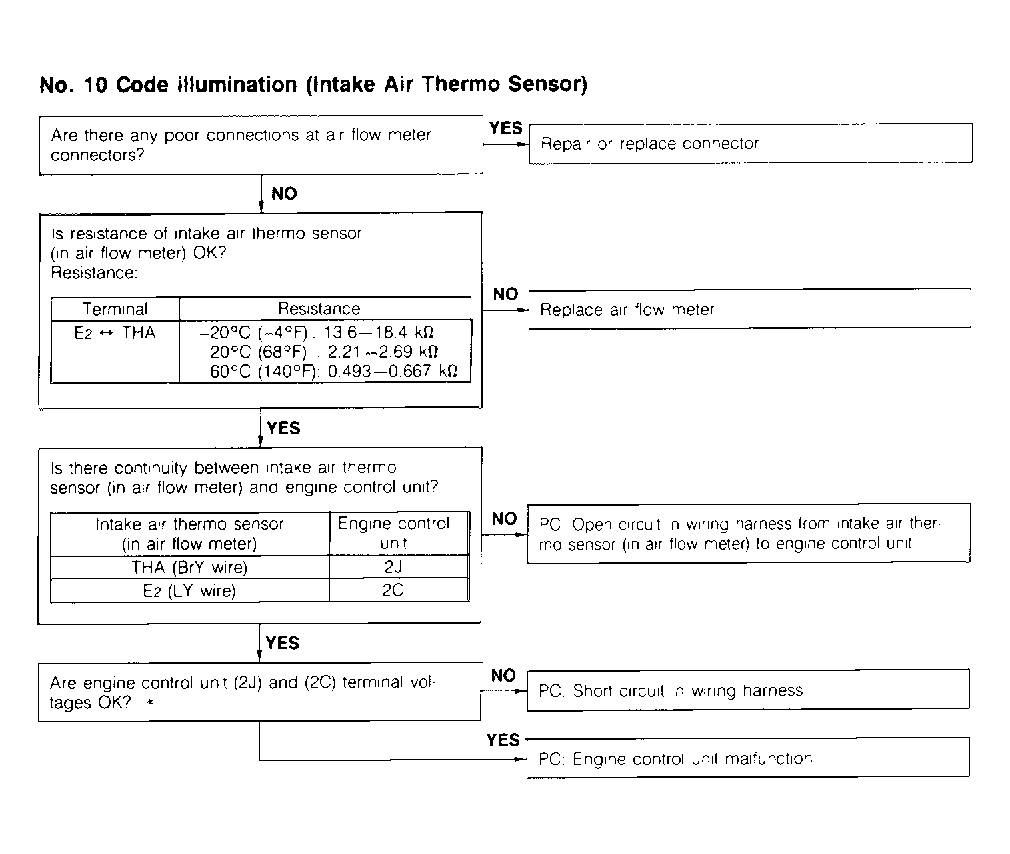

Fig 5: Code No.10 - Intake Air Thermo Sensor

G95510

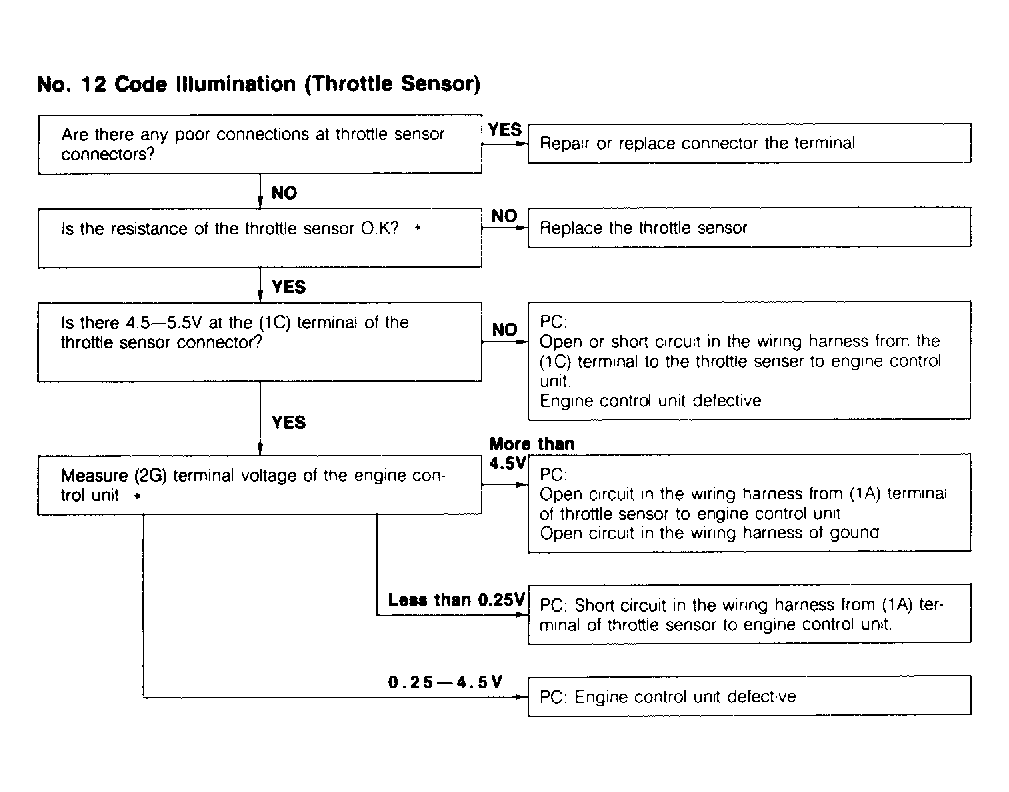

Fig 6: Code No.12 - Throttle Sensor

G94783

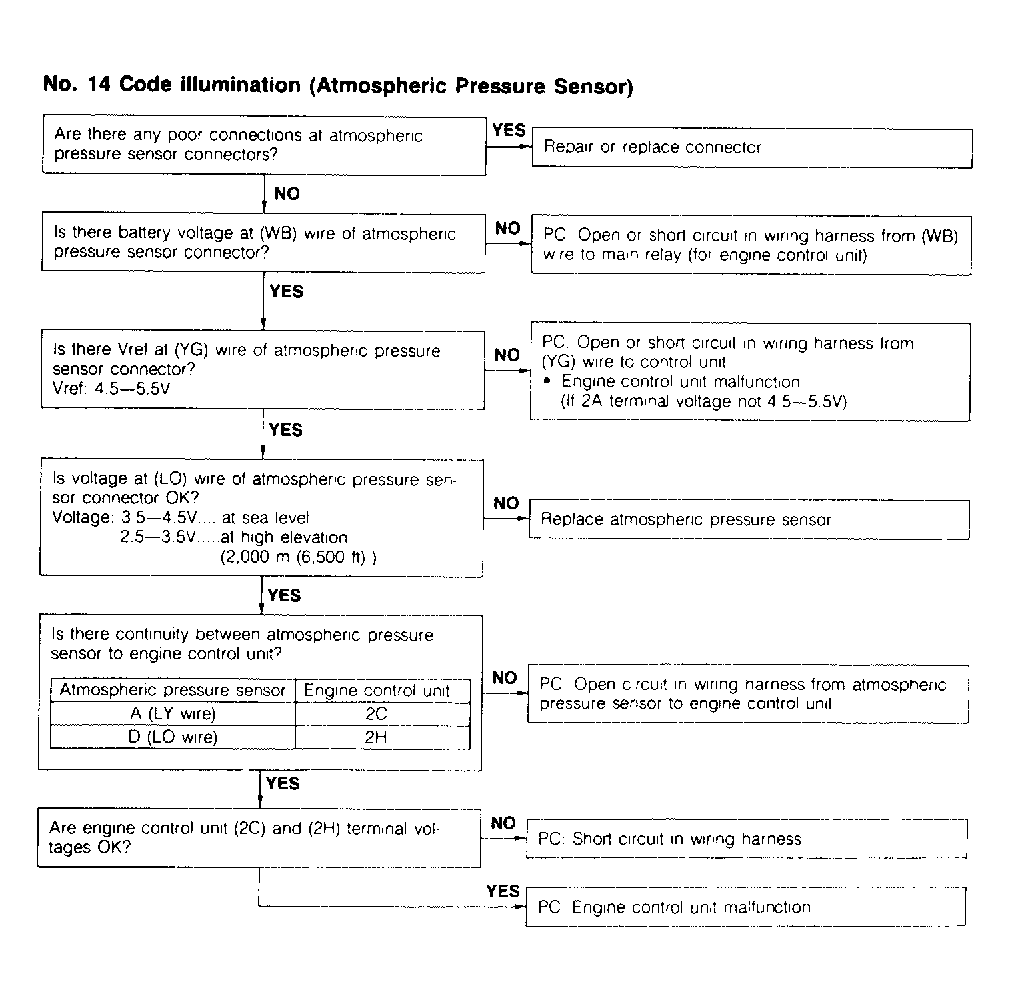

Fig 7: Code No.14 - Atmospheric Pressure Sensor

G95511

Fig 8: Code No.15 - Oxygen Sensor

G95515

Fig 9: Code No.17 - Feedback System

G94784

Fig 10: Code No.25, 26 & 27 - Solenoid Valve

G95512

Fig 11: Code No.34 - BAC Valve

G94785
