323 Non-Turbo Codes

Fig 1: Code No.1 - Ignition Pulse

G94777

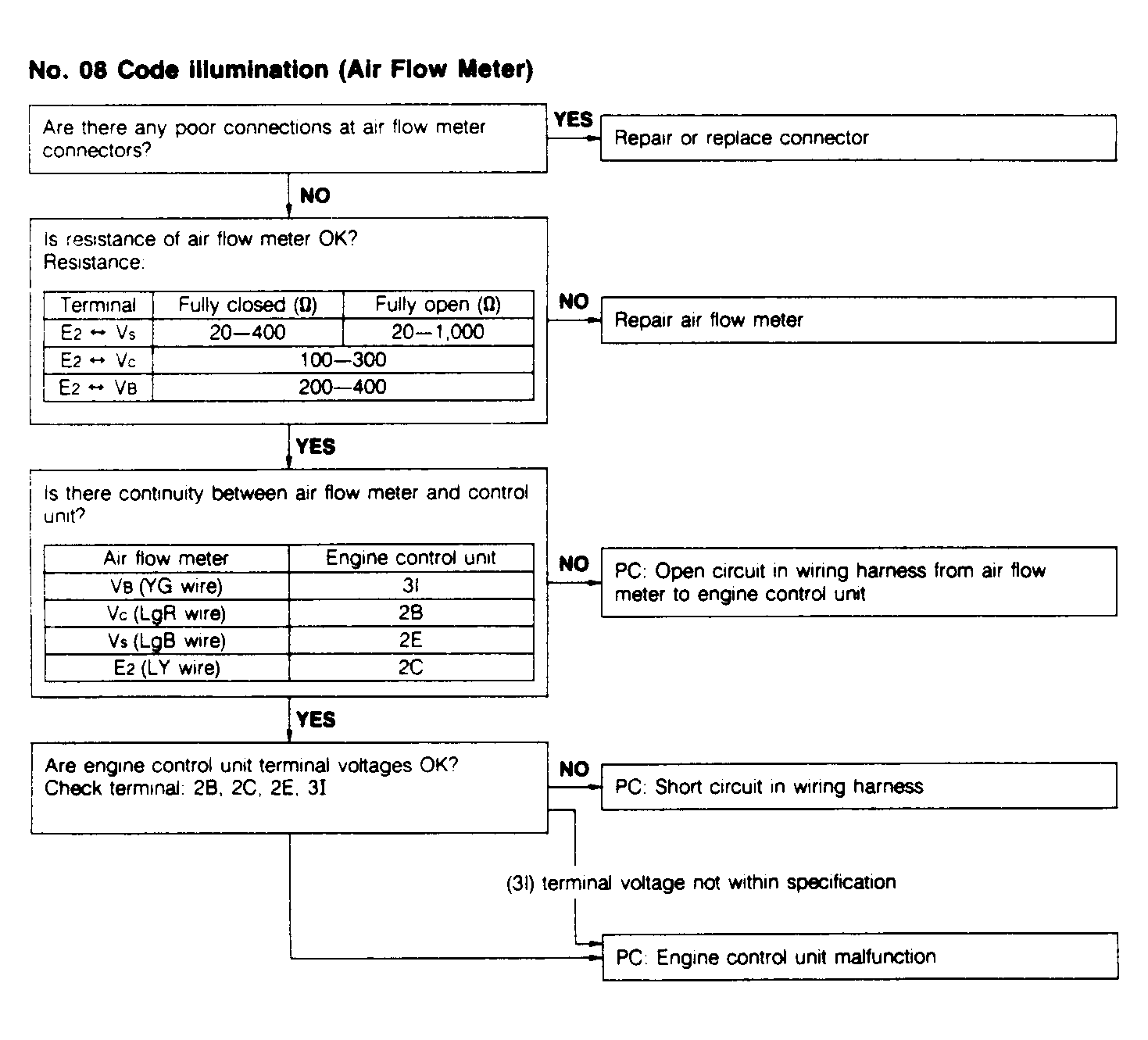

Fig 2: Code No.8 - Air Flow Meter

G95505

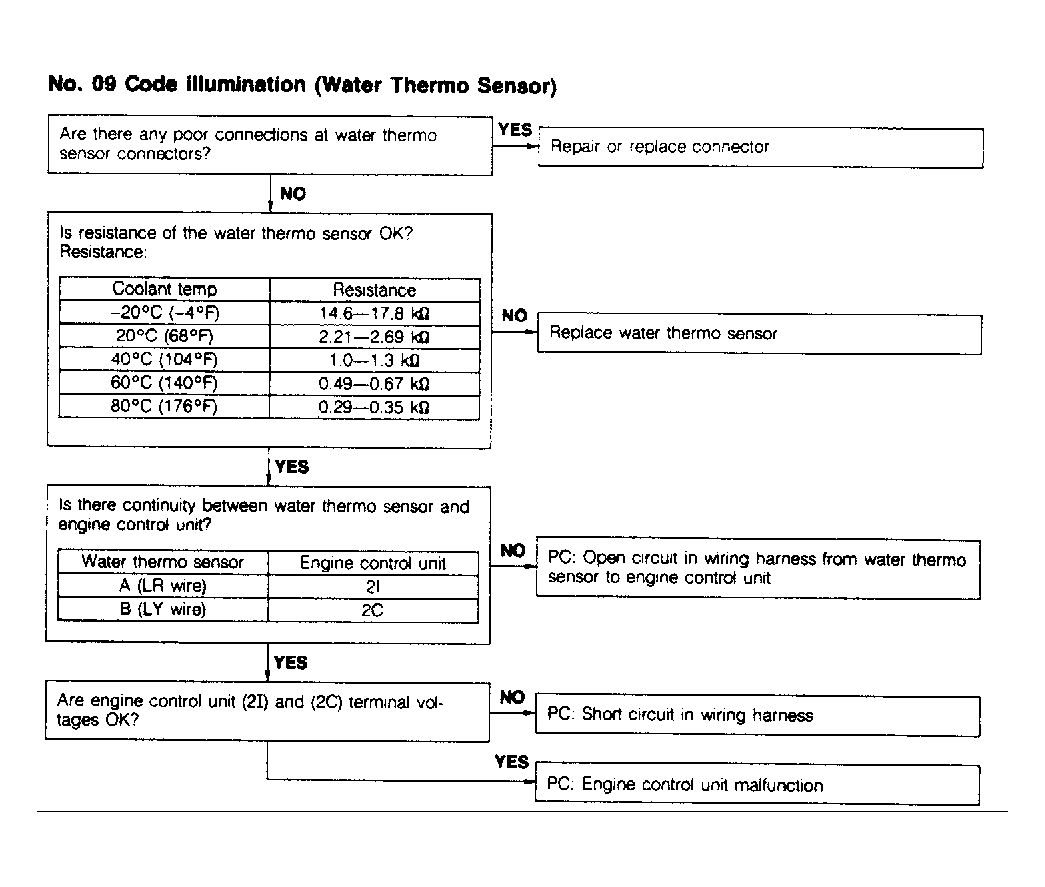

Fig 3: Code No.9 - Water Thermo Sensor

G94778

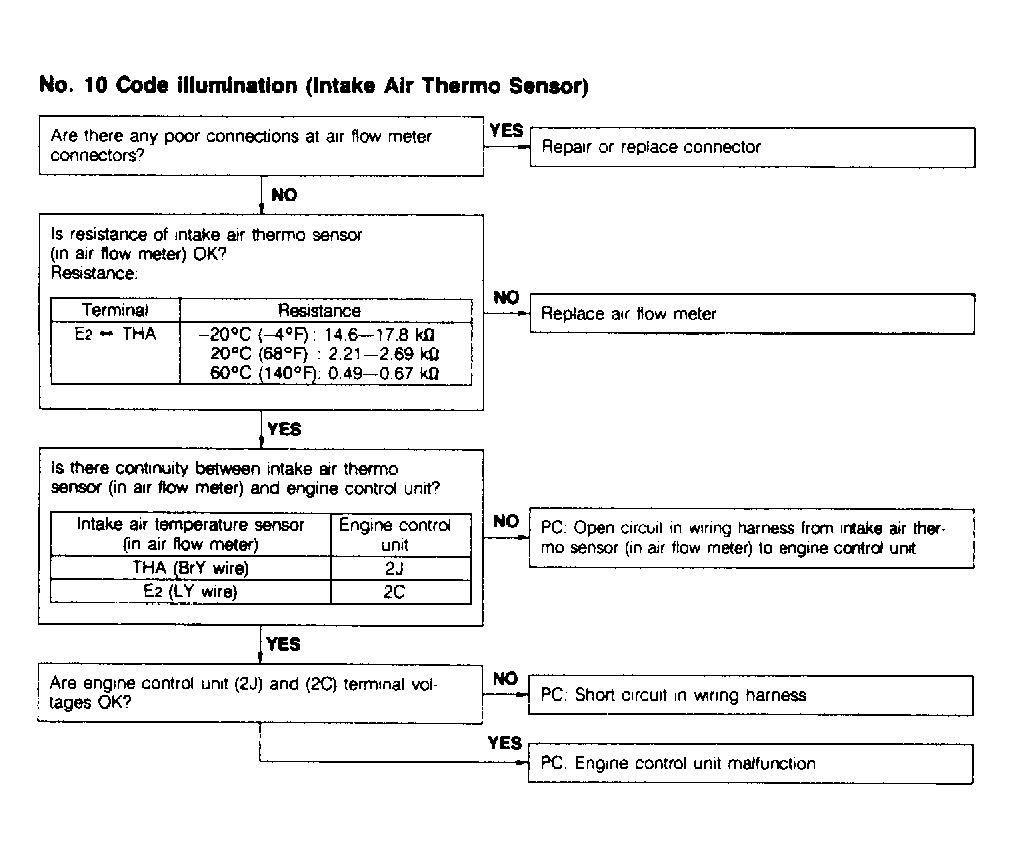

Fig 4: Code No.10 - Intake Air Thermo Sensor

G95506

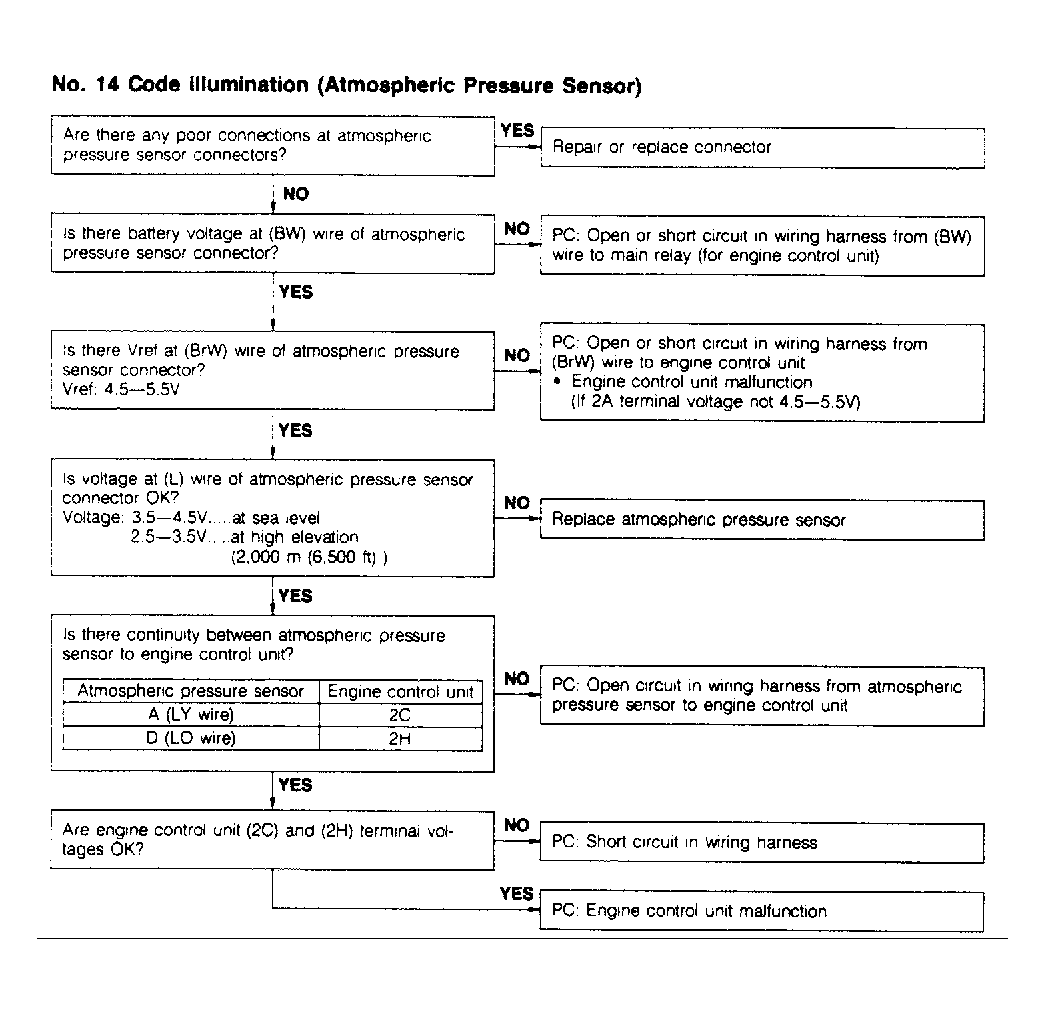

Fig 5: Code No.14 - Atmospheric Pressure Sensor

G94779

Fig 6: Code No.15 - Oxygen Sensor

G95507

Fig 7: Code No.17 - Feedback System

G94780

Fig 8: Code No.26 & 27 - Solenoid Valve

G95513

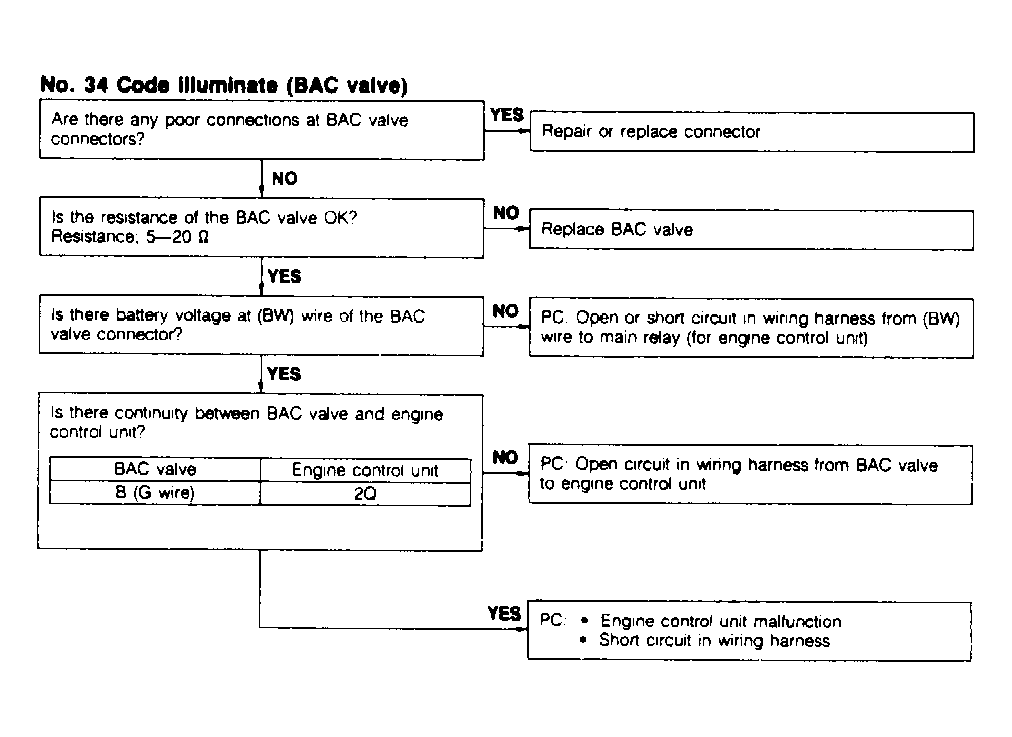

Fig 9: Code No.34 - BAC Valve

G95508
