Vacuum Diaphragm Rod Selections

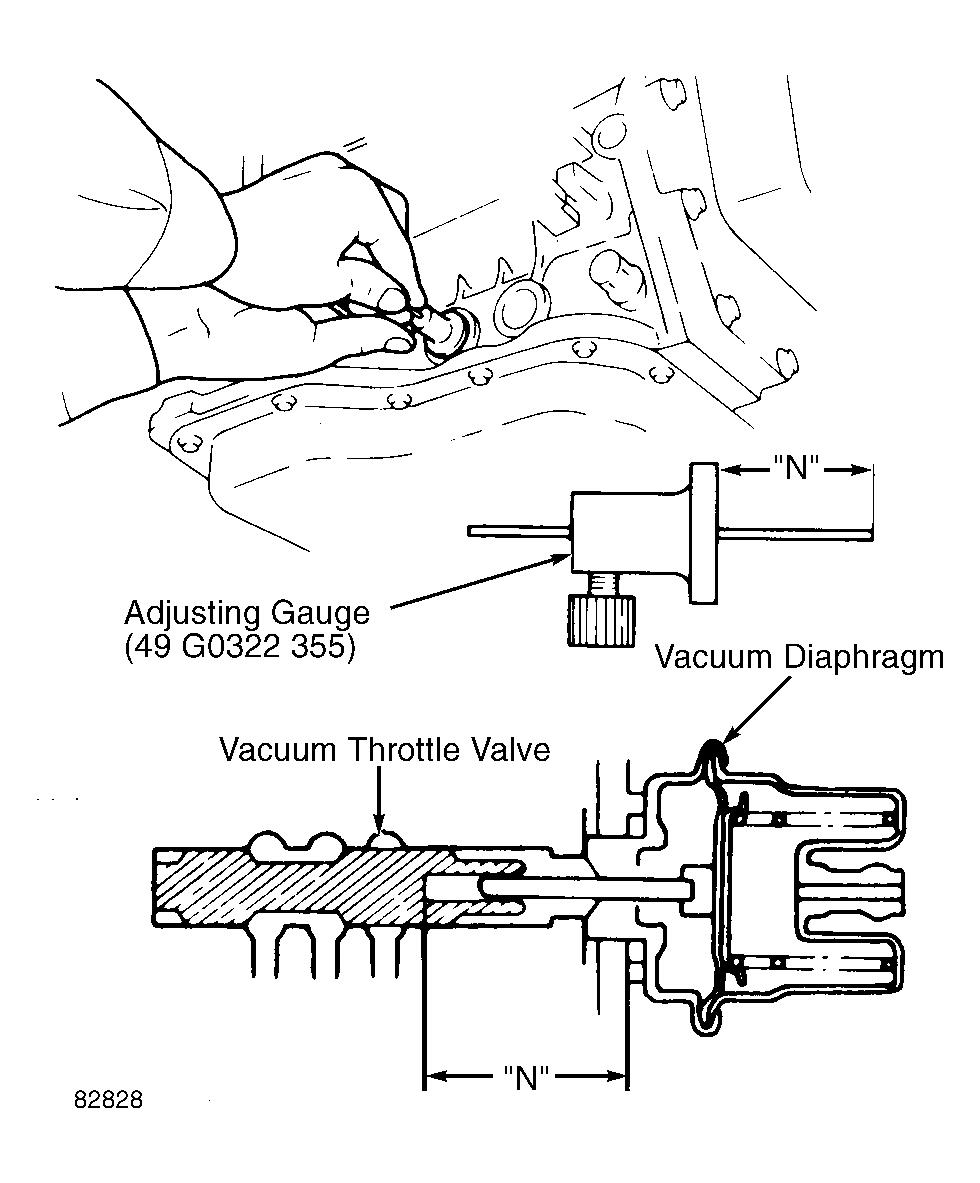

VACUUM DIAPHRAGM ROD SELECTION (B2200, B2600 & RX7)
| Dimension "N": In. (mm) | Rod Length: In. (mm) |
|---|---|
| Below 1.0099 (25.65) | 1.14 (29.0) |
| 1.0099-1.0295 (25.65-26.15) | 1.16 (29.5) |
| 1.0295-1.0492 (26.15-26.65) | 1.18 (30.0) |
| 1.0492-1.0650 (26.65-27.15) | 1.20 (30.5) |
| 1.0689 Or Over (27.15) | 1.22 (31.0) |
VACUUM DIAPHRAGM ROD SELECTION (929)
| Dimension "N": In. (mm) | Rod Length: In. (mm) |
|---|---|
| Below 1.0709 (27.20) | 1.14 (29.0) |
| 1.0748-1.0905 (27.30-27.70) | 1.16 (29.5) |
| 1.0945-1.1102 (27.80-28.20) | 1.18 (30.0) |
| 1.1142-1.1300 (28.30-28.70) | 1.20 (30.5) |
| Over 1.1339 (28.80) | 1.22 (31.0) |
