System Diagrams: HONDA

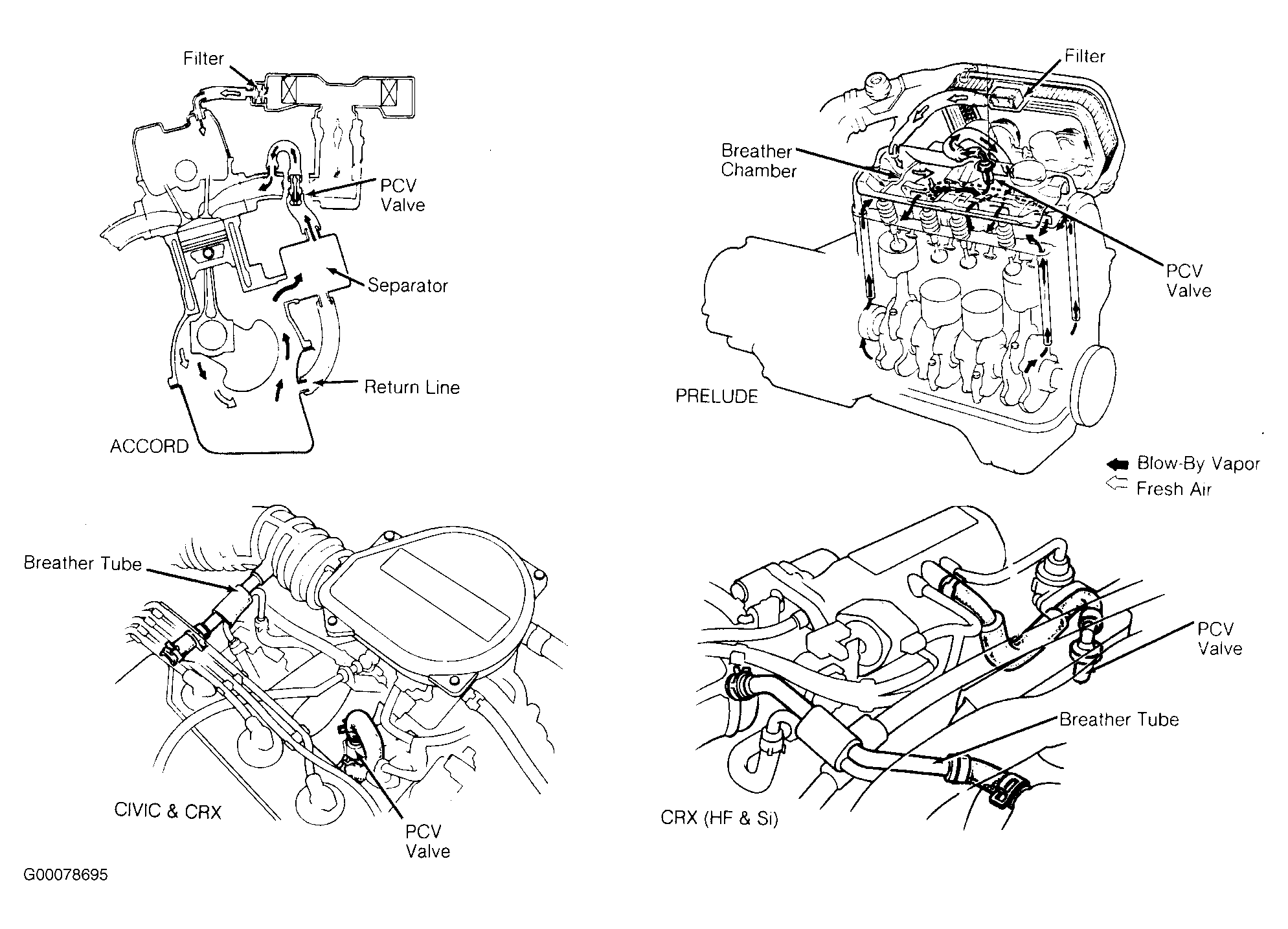

Fig 1: Crankcase Ventilation System (Honda)

G00078695

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
