Key Reminder Switch

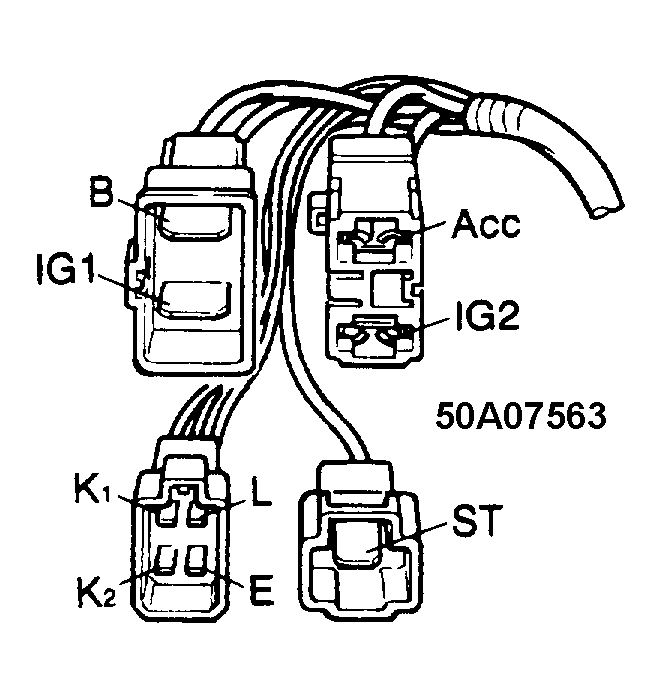

When key has not been removed, circuits "K1" and "K2" are connected/closed. When key has been removed, circuits "K1" and "K2" are open. See Figure .
