2.2L Feedback Carburetor System
>>
Diagnosis & Testing
>>
Trouble Code Identification Charts
Trouble Code Identification Charts

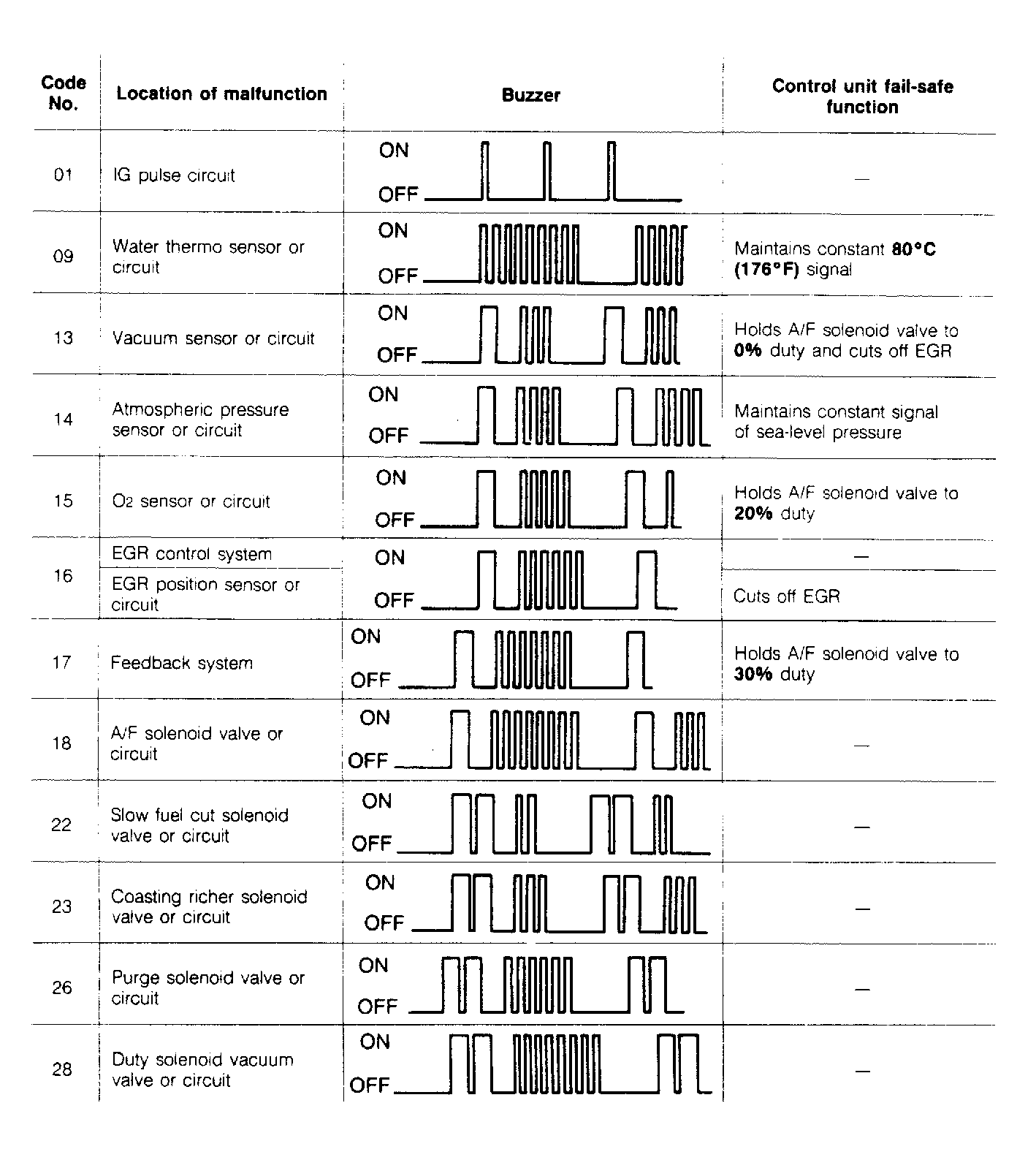

Fig 1: Trouble Code Identification Chart (1 of 2)
Courtesy of MAZDA MOTORS CORP.

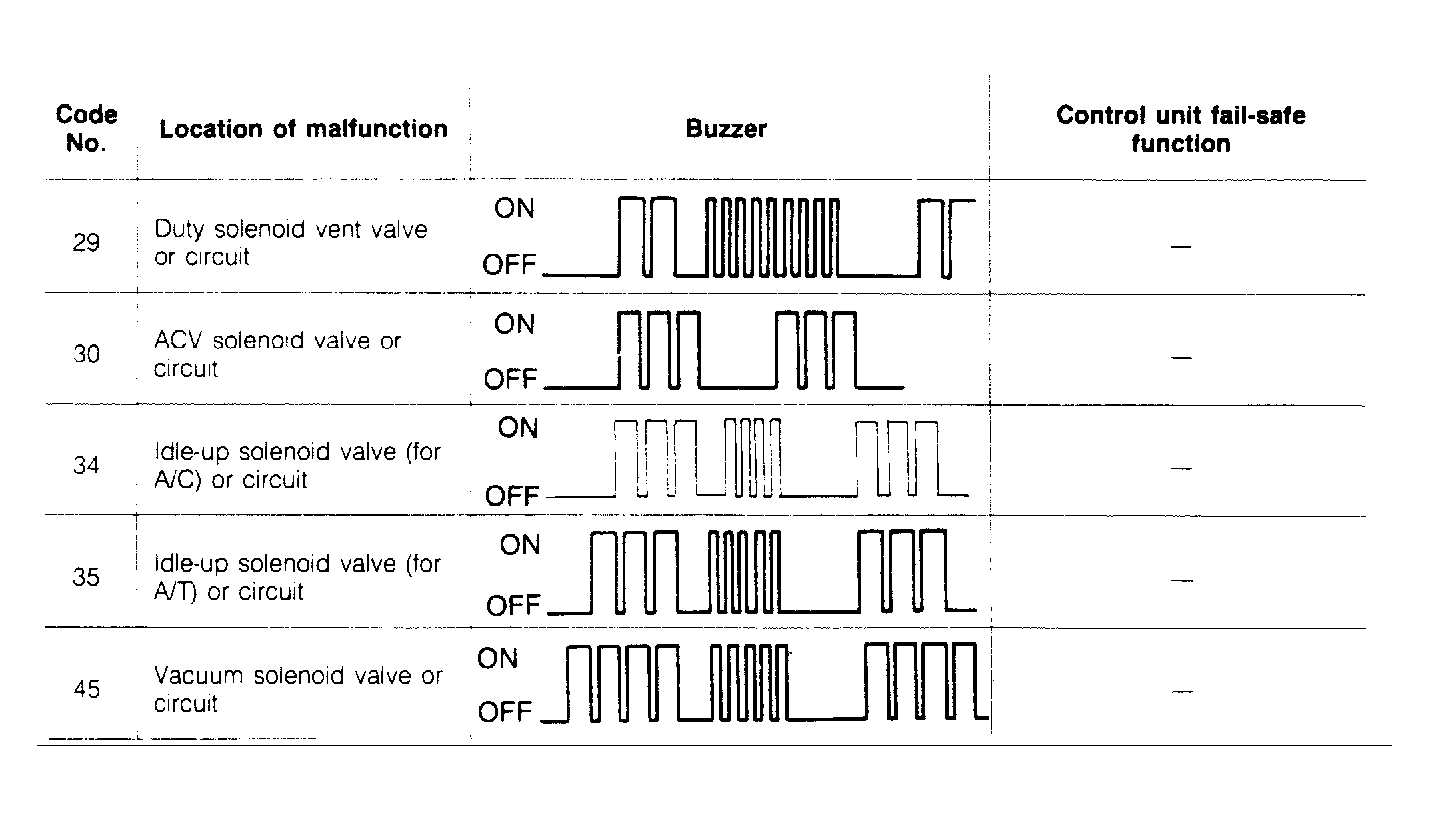

Fig 2: Trouble Code Identification Chart (2 of 2)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
