Home >> Mazda >> 1987 >> 626 Base >> Repair and Diagnosis >> Restraints >> Restraints Control Systems >> Seat Belts - Automatic >> Wiring Diagram

Seat Belts - Automatic: Wiring Diagram

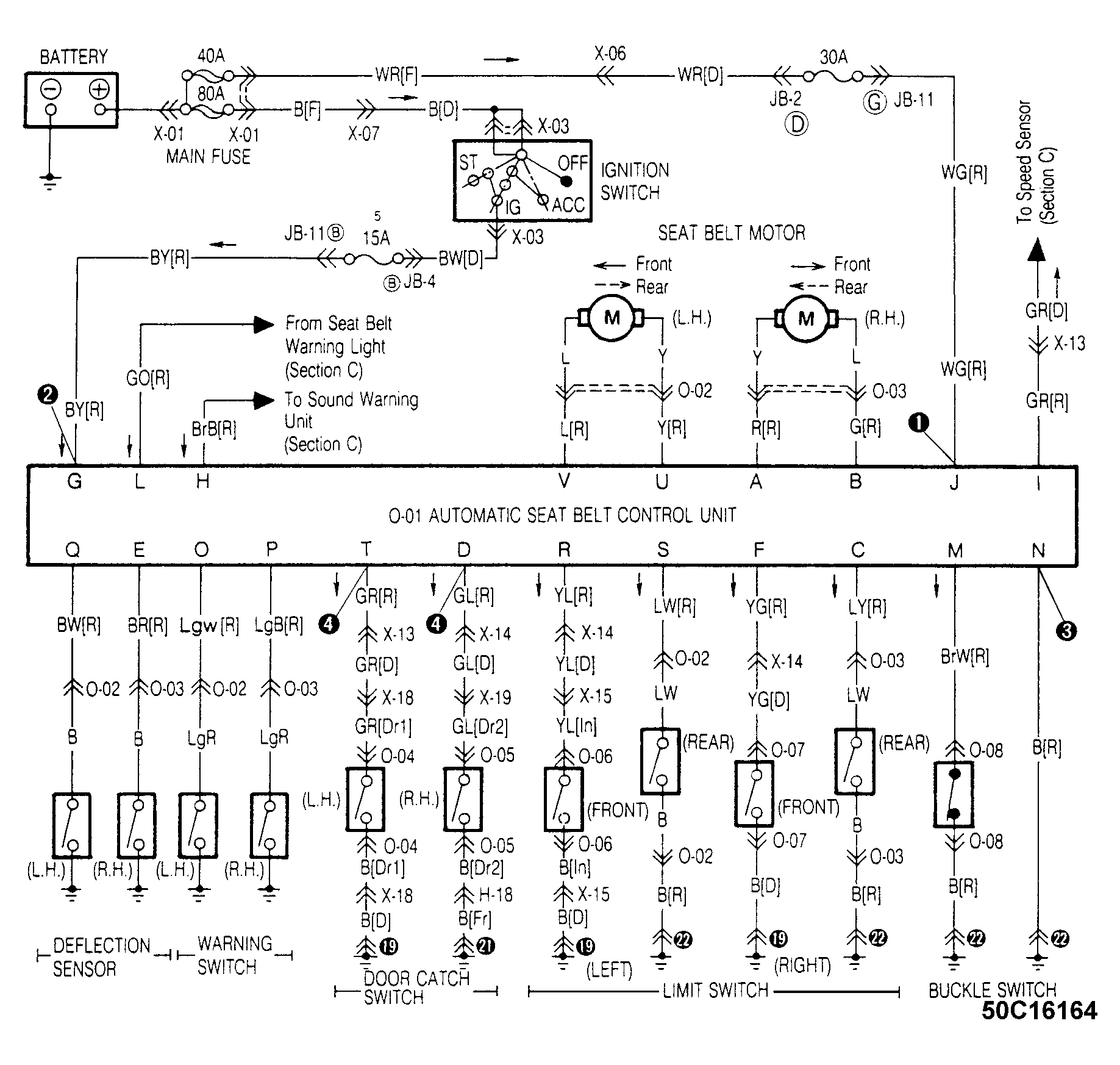

Fig 1: Automatic Seat Belt Wiring Diagram

G50C16164
