Temperature Sending Unit

With sending unit removed from vehicle, place in container of water and heat to 176°F (80°C). Measure resistance to verify 49-58 ohms. If not, replace sending unit.

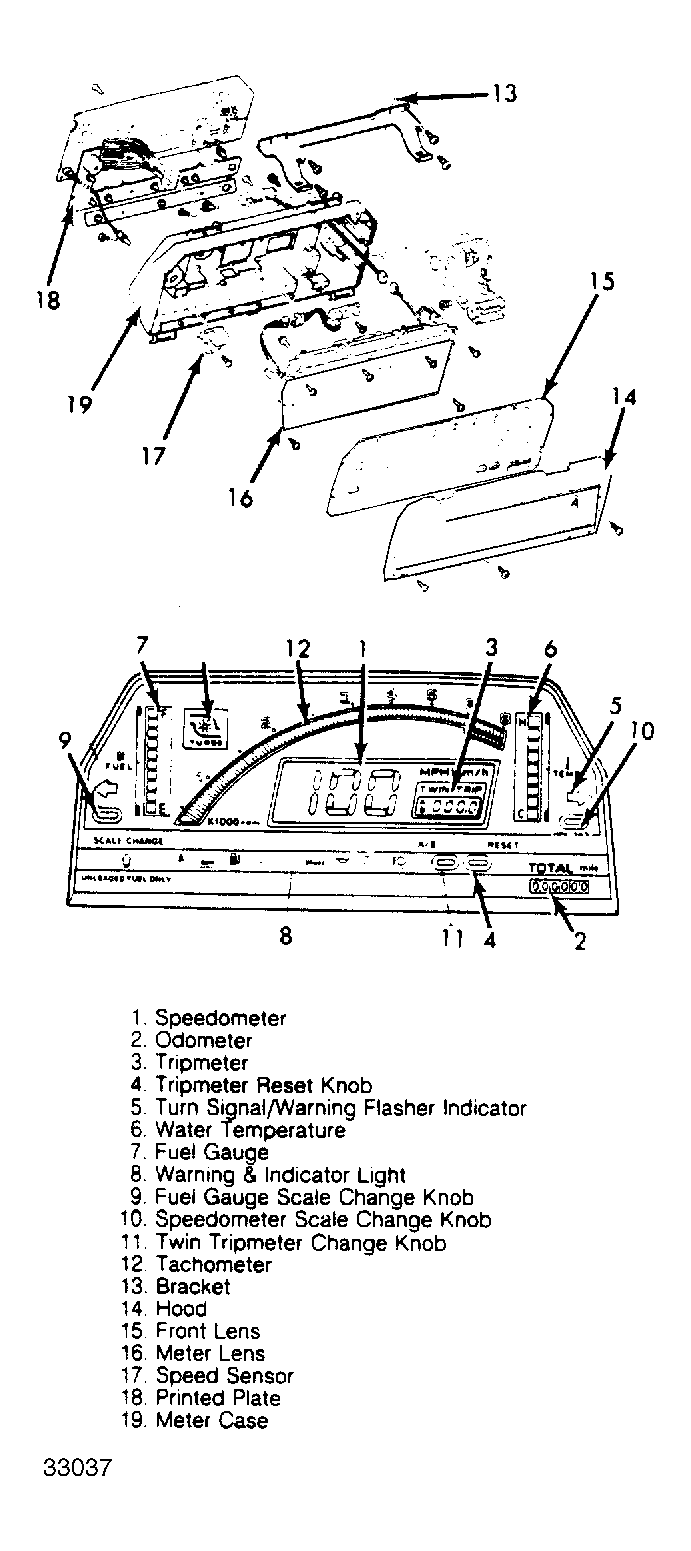

Fig 1: Exploded View of 626 Electronic Instrumentation
G33037
