Vacuum Diaphragm Rod Selection Tables
VACUUM DIAPHRAGM ROD SELECTION

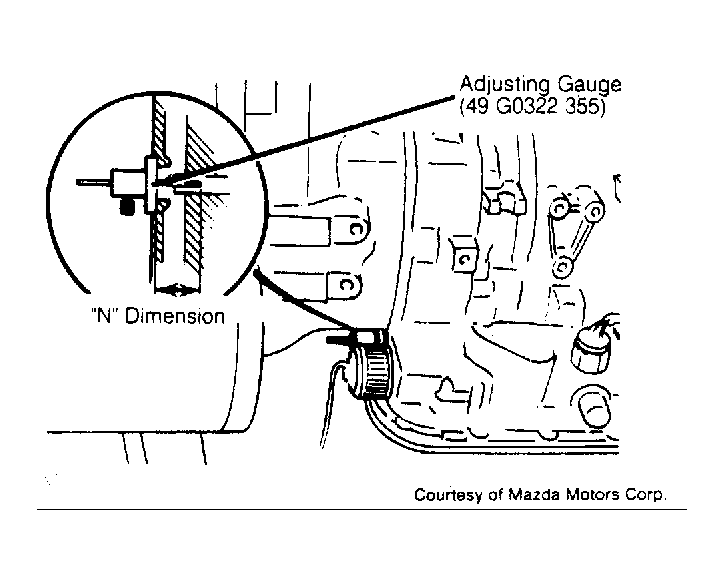

| Dimension "N" - In. (mm) |
Rod Length - In. (mm) |
| Below 1.000 (25.4) |
1.16 (29.5) |
| 1.000-1.020 (25.4-25.9) |
1.18 (30.0) |
| 1.020-1.039 (25.9-26.4) |
1.20 (30.5) |
| 1.039-1.059 (26.4-26.9) |
1.22 (31.0) |
| Over 1.059 (26.9) |
1.24 (31.5) |
Courtesy of MAZDA MOTORS CORP.
