Rear Wiper Motor

  1. Apply positive battery voltage to "A" terminal and ground "B" terminal. SeeFig 1 . Motor should operate.
  2. Start motor. Disconnect ground from "B" terminal, then immediately connect ground to motor body. Ensure motor shaft reaches auto-stop position and conductivity is present through grounding of the motor body.

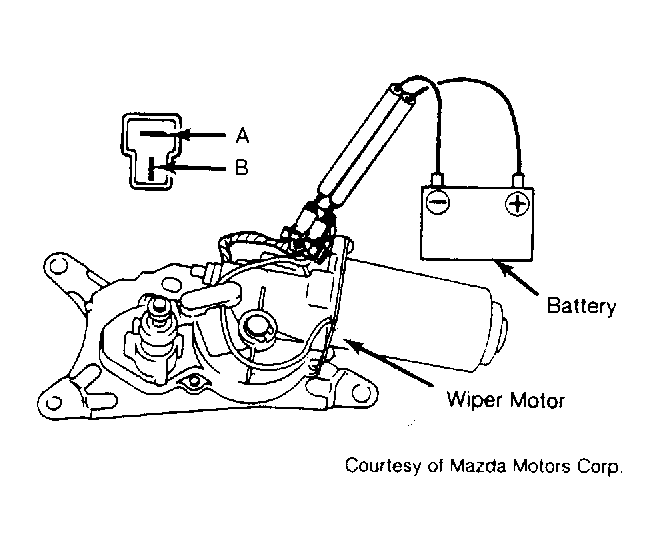

Fig 1: Mazda 323 & 626 Rear Wiper Motor Terminal Location
G68220Courtesy of MAZDA MOTORS CORP.
