B2200 And B2600

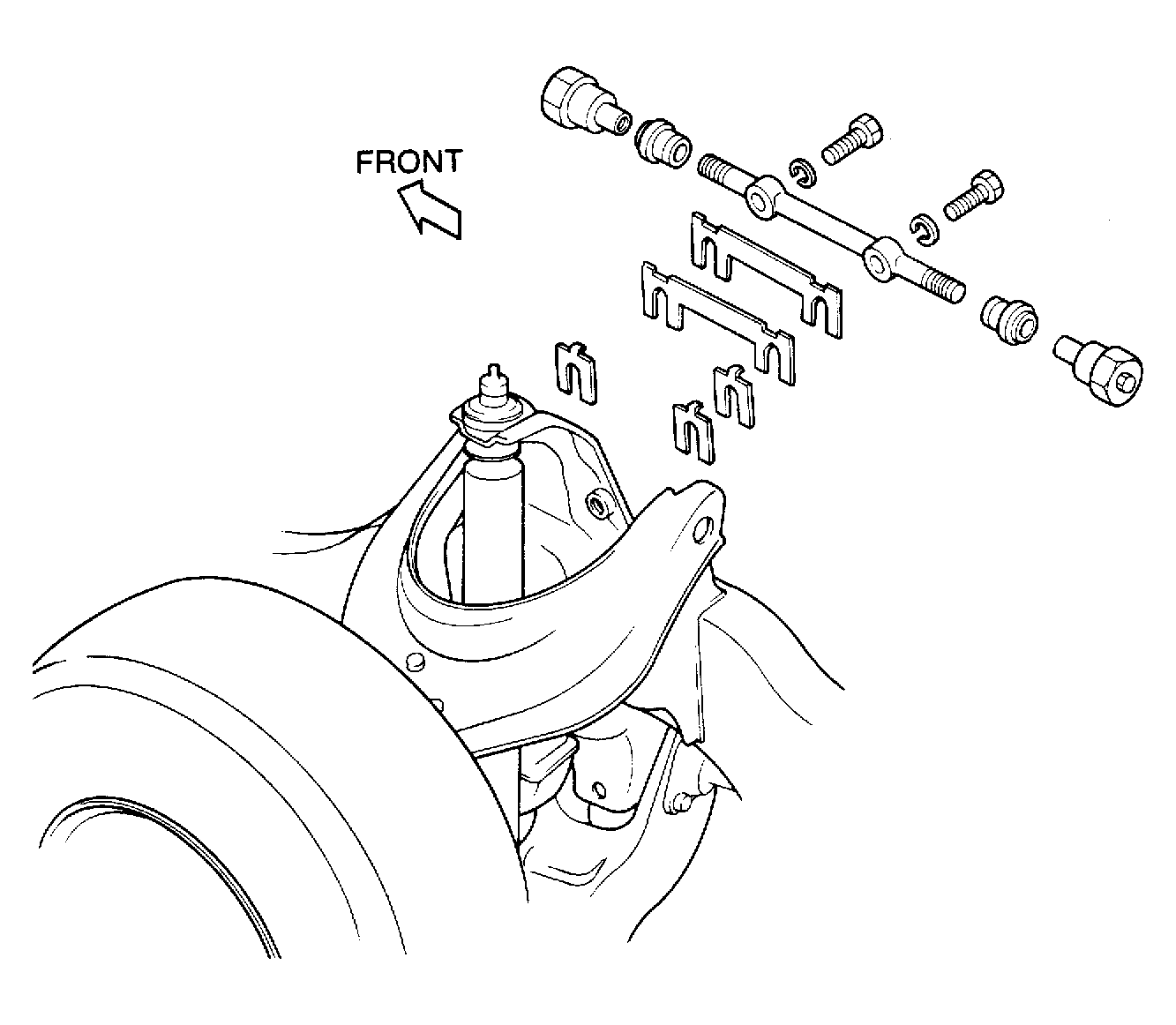

Camber and caster angles are adjusted by adding or subtracting shims.

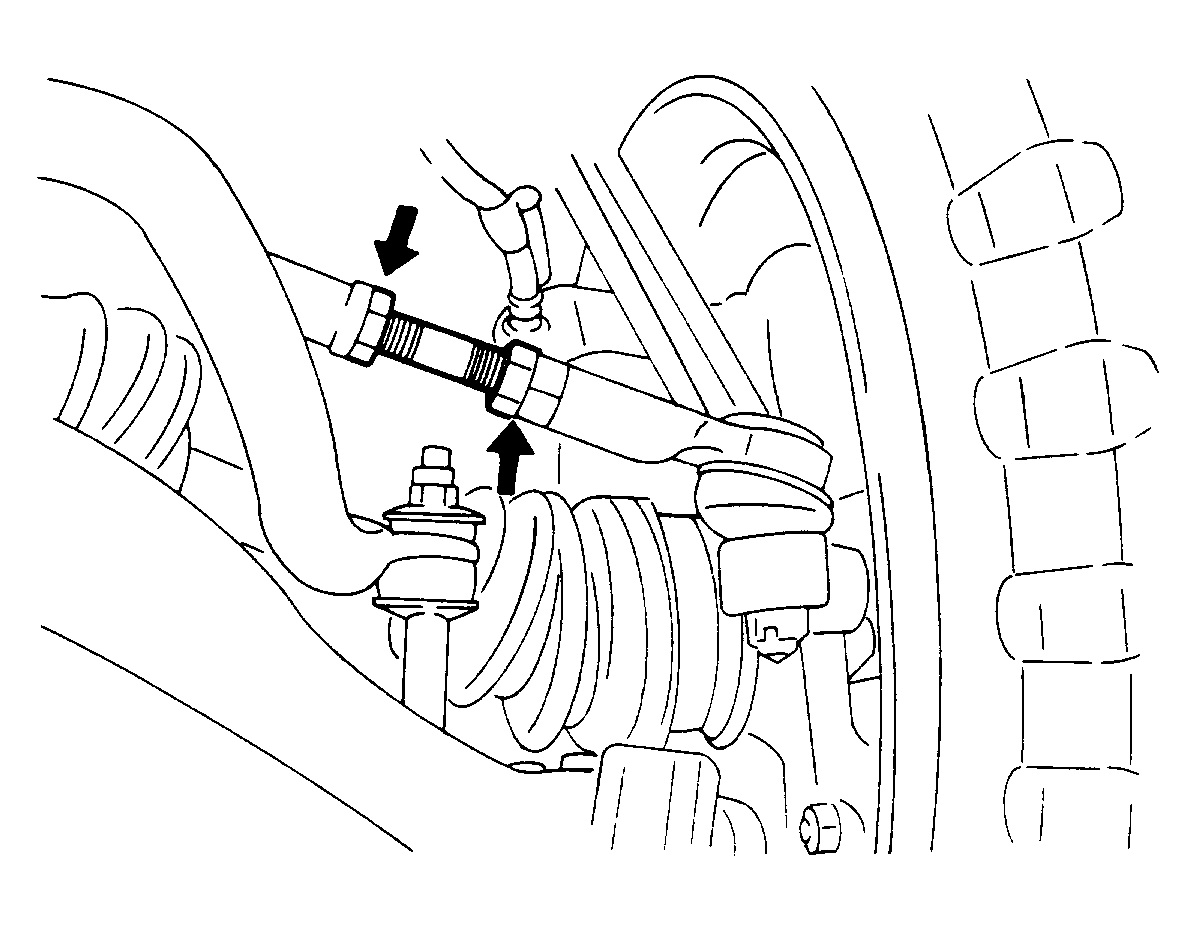

To adjust the toe-in, loosen the left and right tie-rod lock nuts, and turn the tie-rods by the same degree. Lock nut tightening torque is 56 Ft. Lbs. (78 N.m).
Camber and caster angles are adjusted by adding or subtracting shims.
To adjust the toe-in, loosen the left and right tie-rod lock nuts, and turn the tie-rods by the same degree. Lock nut tightening torque is 56 Ft. Lbs. (78 N.m).
