Inspection Procedure

Operate engine until normal operating temperature is reached and allow to idle. Engine speed should not exceed 4000 RPM while warming up.

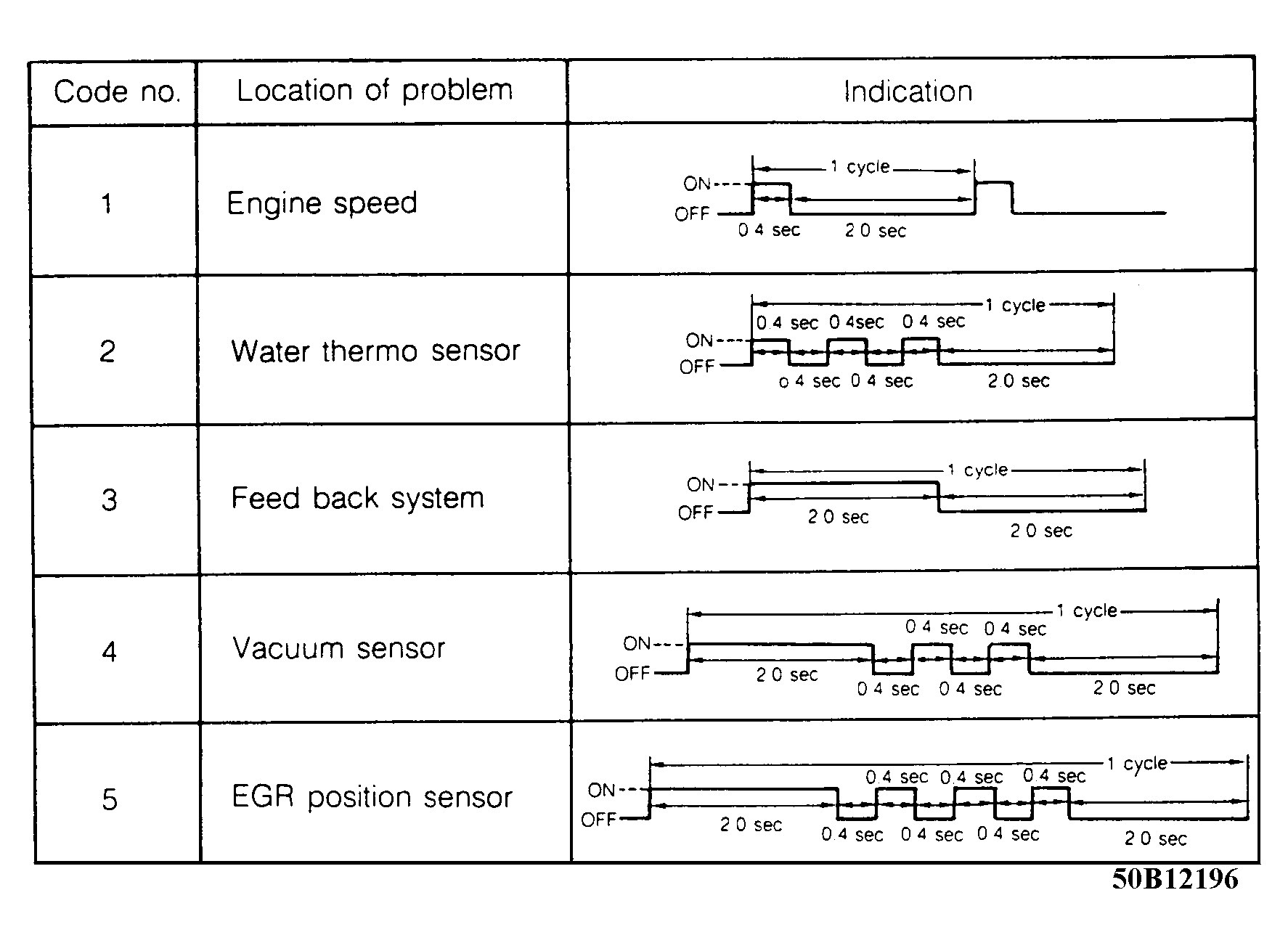

Fig 1: Trouble Code Identification and Indication Pattern
G50B12196
NOTE: The control unit has a built-in fail-safe mechanism. If a malfunction occurs during vehicle operation, the control unit will, on its own initiative, operate on preset parameters that will allow normal driving performance to be maintained. See FAIL-SAFE CONDITIONS for additional information.
