Purge Valve

A vacuum operated purge valve directs crankcase, fuel tank, and canister vapors into intake manifold when the throttle is opened.

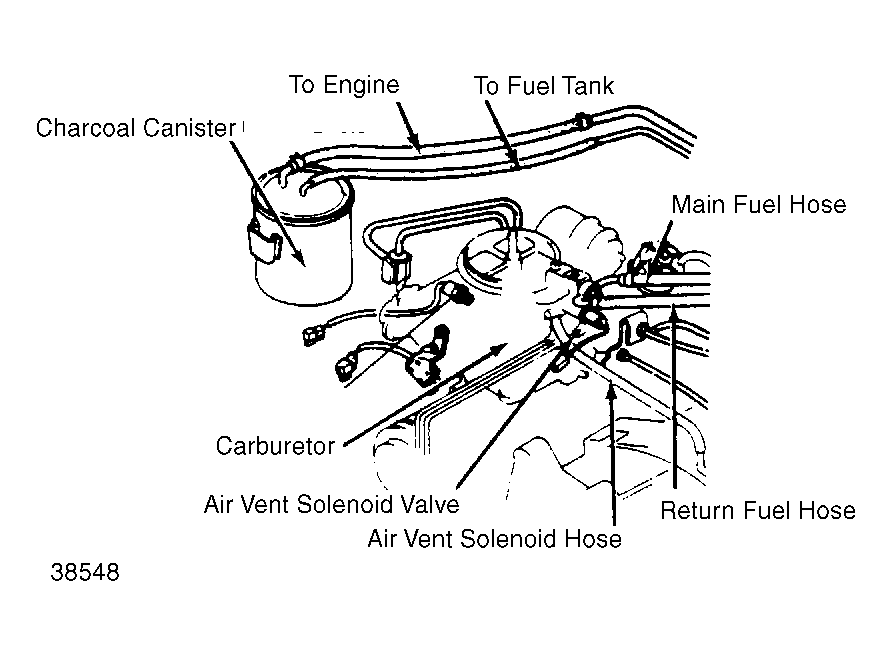

Fig 1: Canister and Air Vent Solenoid Location
G38548
