Accelerator Cable Adjustment

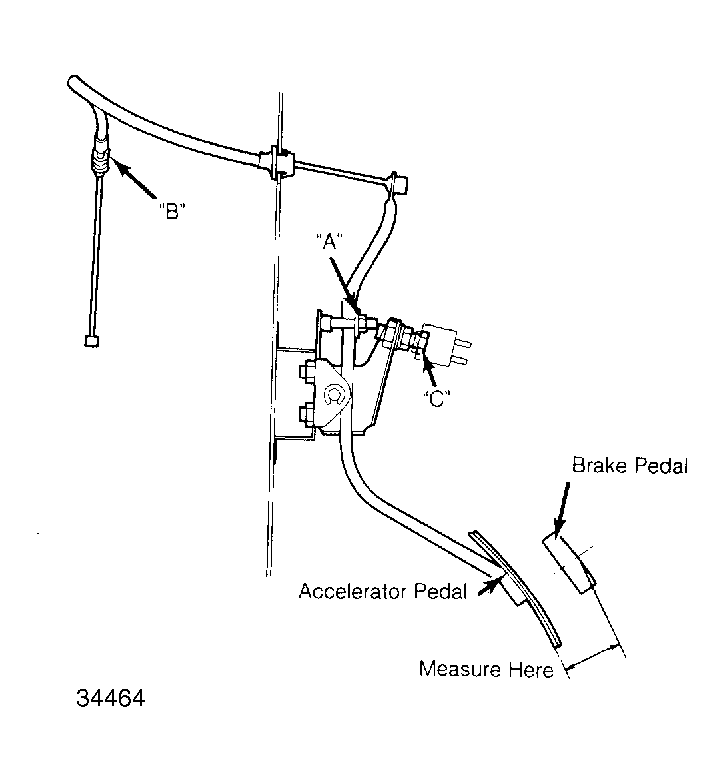

  1. Check accelerator pedal position. Pedal should be 1.5-1.9" (37-47 mm) lower than brake pedal. See Figure . If necessary, adjust nut "A" to obtain correct position.
  2. Cable free play at carburetor should be .04-.12" (1-3 mm). To adjust free play, adjust nut "B". Depress accelerator to floor and check that throttle valves are wide open. If necessary, adjust stopper bolt.
