Float Level
- Before assembling air horn to main body, adjust float level. Invert air horn and allow float to hang by its own weight.

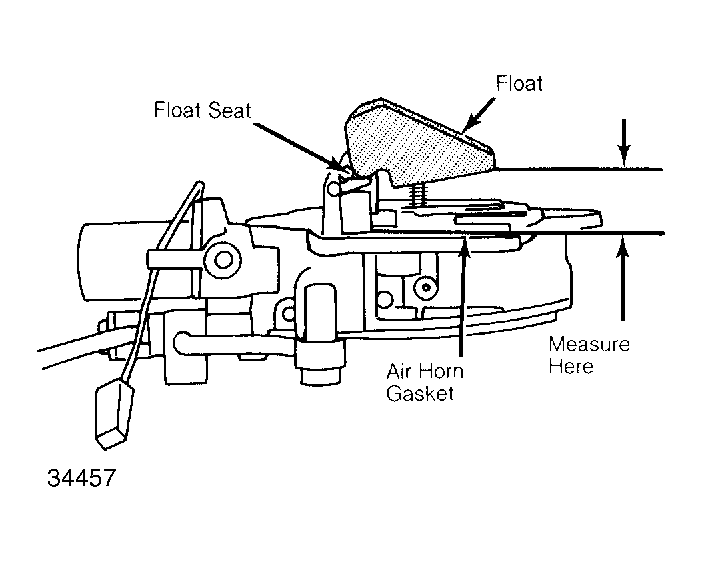

- Measure clearance between float and air horn gasket. See Fig 1 . Clearance should be .61-.65" (15.5-16.5 mm). If not within specifications, bend float seat to adjust.
