Float Drop

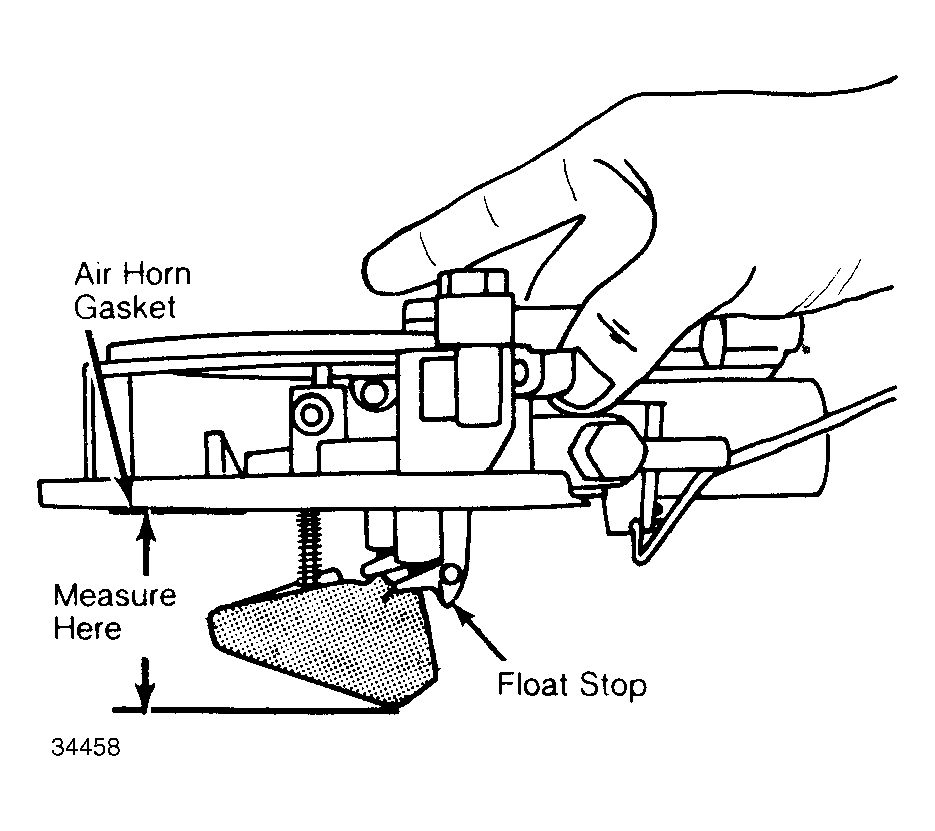

Turn air horn upright and allow float to hang by its own weight. Measure distance between bottom of float and air horn gasket. See Fig 1 . Distance should be 1.98-2.02" (50.5-51.5 mm). If not, bend float stop to adjust.
Turn air horn upright and allow float to hang by its own weight. Measure distance between bottom of float and air horn gasket. See Fig 1 . Distance should be 1.98-2.02" (50.5-51.5 mm). If not, bend float stop to adjust.
