Fuel Injected Models

Warm engine to operating temperature. Stop engine and disconnect Green connector. Using 2 voltmeters, connect leads to Green connector terminals. See Fig 1 . Turn ignition on and observe voltmeters. Current should flow to 1 of the voltmeters.

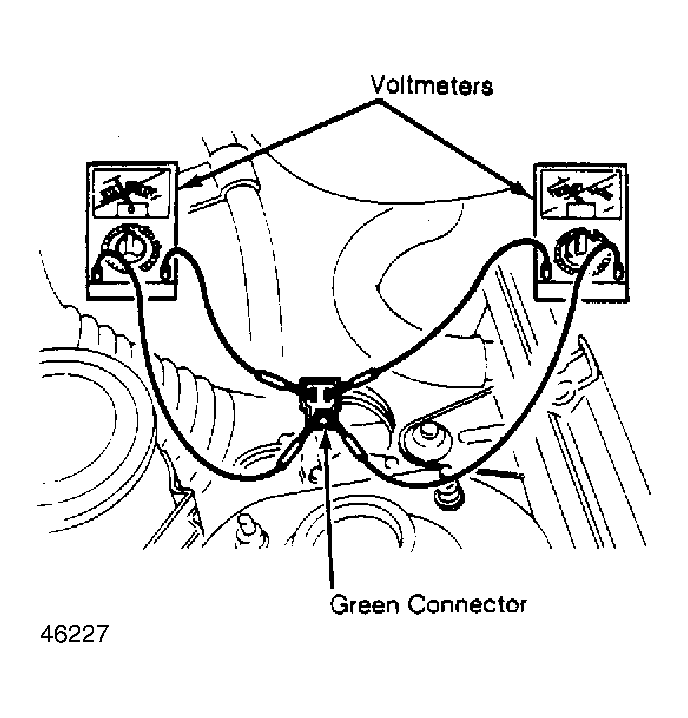

Fig 1: Voltmeters Connected to Adjust Throttle Sensor (Applies Only To Fuel Injected Models)
If current flows to both voltmeters, remove throttle sensor adjusting screw cap and turn adjusting screw counterclockwise. If current does not flow to either voltmeter, turn adjusting screw clockwise. See Fig 2 . Remove test equipment. Reconnect Green connector and insert cap over throttle adjusting screw.

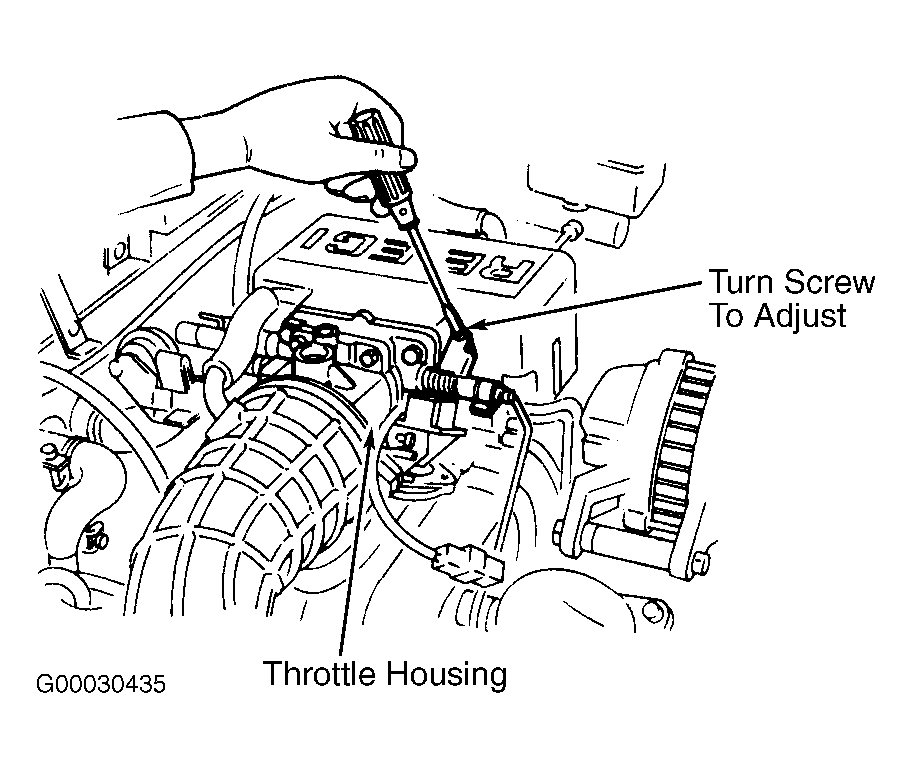

Fig 2: Adjusting Throttle Sensor (Turn Adjusting Screw To Adjust Current Flow To Voltmeters)
