Tune-Up - Rotary: Adjustments: Distributor

All models are equipped with Mitsubishi electronic ignition with 2 pickup coils. Air gap is nonadjustable.

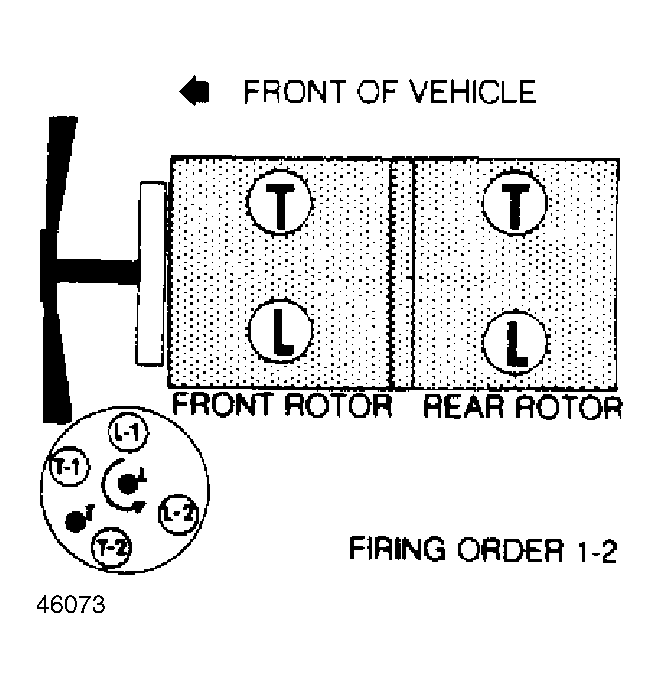

Fig 1: Firing Order & Distributor Rotation

G46073
