Maintenance Service Reminder Reset - Procedure 03

Vehicles With Type B Audio:

The following maintenance period notifications can be displayed on the Maintenance Monitor display:

• Scheduled Maintenance Due
• Tire Rotation Due
• Oil Change Due

1. Select the APPLICATIONS icon (A) on the home screen.
2. Select MAINTENANCE.
   NOTE: On some models, select "Vehicle Status Monitor" before "Maintenance"
3. Switch the tab and select the setting item you want to RESET.
4. Once reset, the remaining time and distance values return to their appropriate settings.

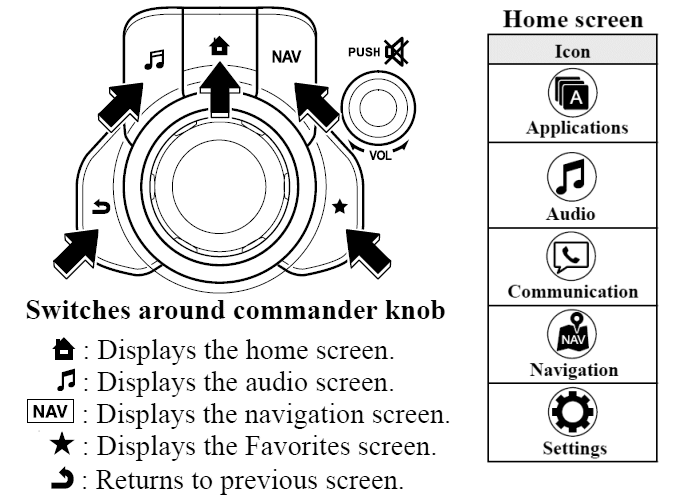

Fig 1: Identifying Type B Audio & Controls

Courtesy of MAZDA MOTORS CORP.

Vehicles With Type A Audio:

1. Press and hold the Trip/Selector button (see Fig 2) with the ignition switched off, then switch it on.
2. Keep pressing the Trip/Selector button for more than 5 seconds. The master warning light will flash for a few seconds when the reset is completed.

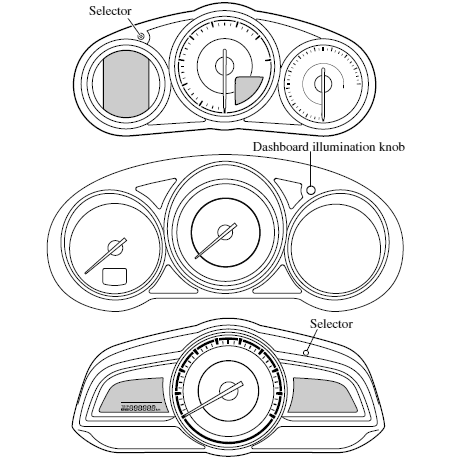

Fig 2: Typical Instrument Cluster Configurations

Courtesy of MAZDA MOTORS CORP.
