Control Units

CONTROL UNITS LOCATION

Component Location

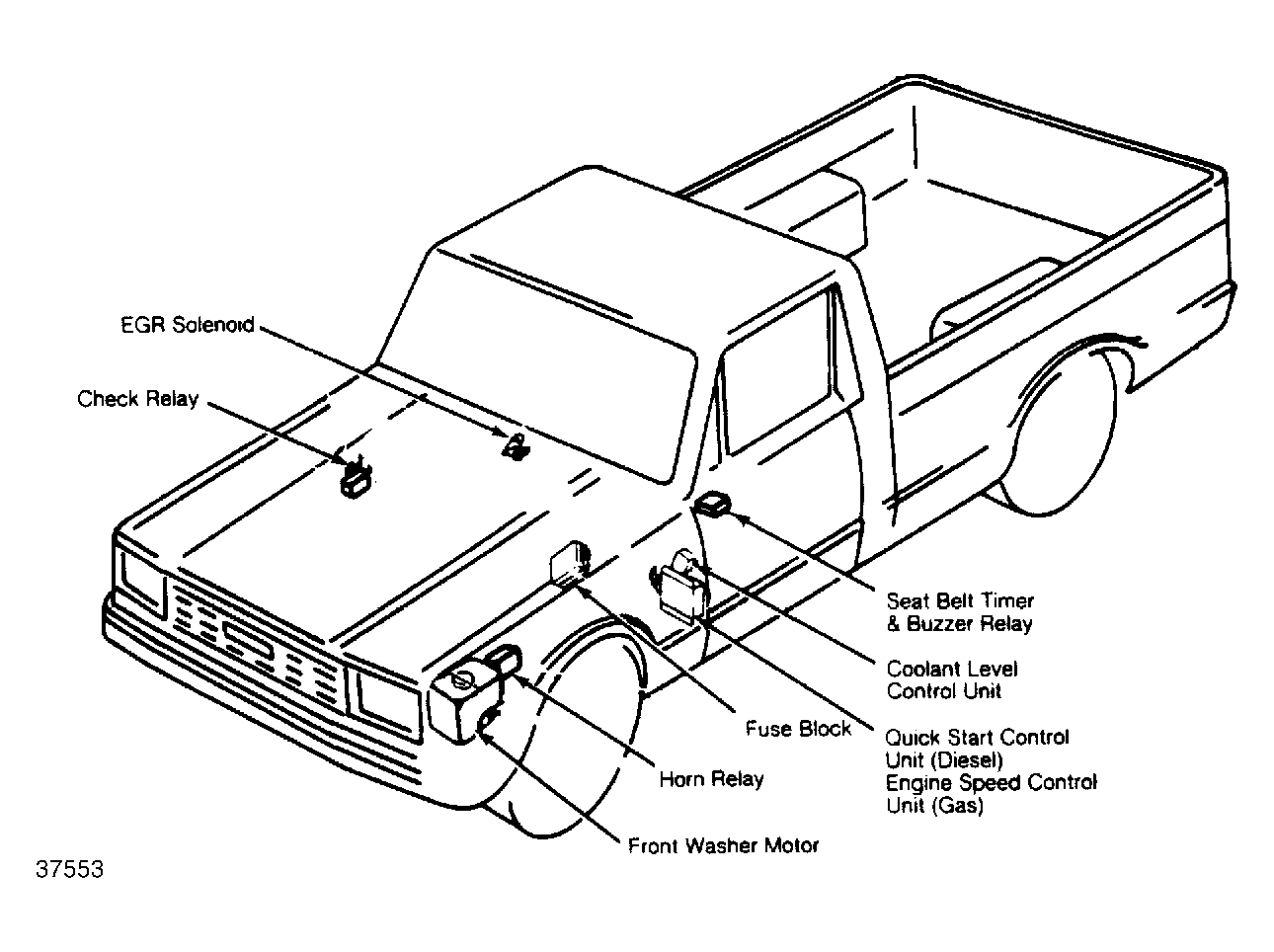

Coolant Level Control Unit On upper left kick panel. See Figure & Figure .

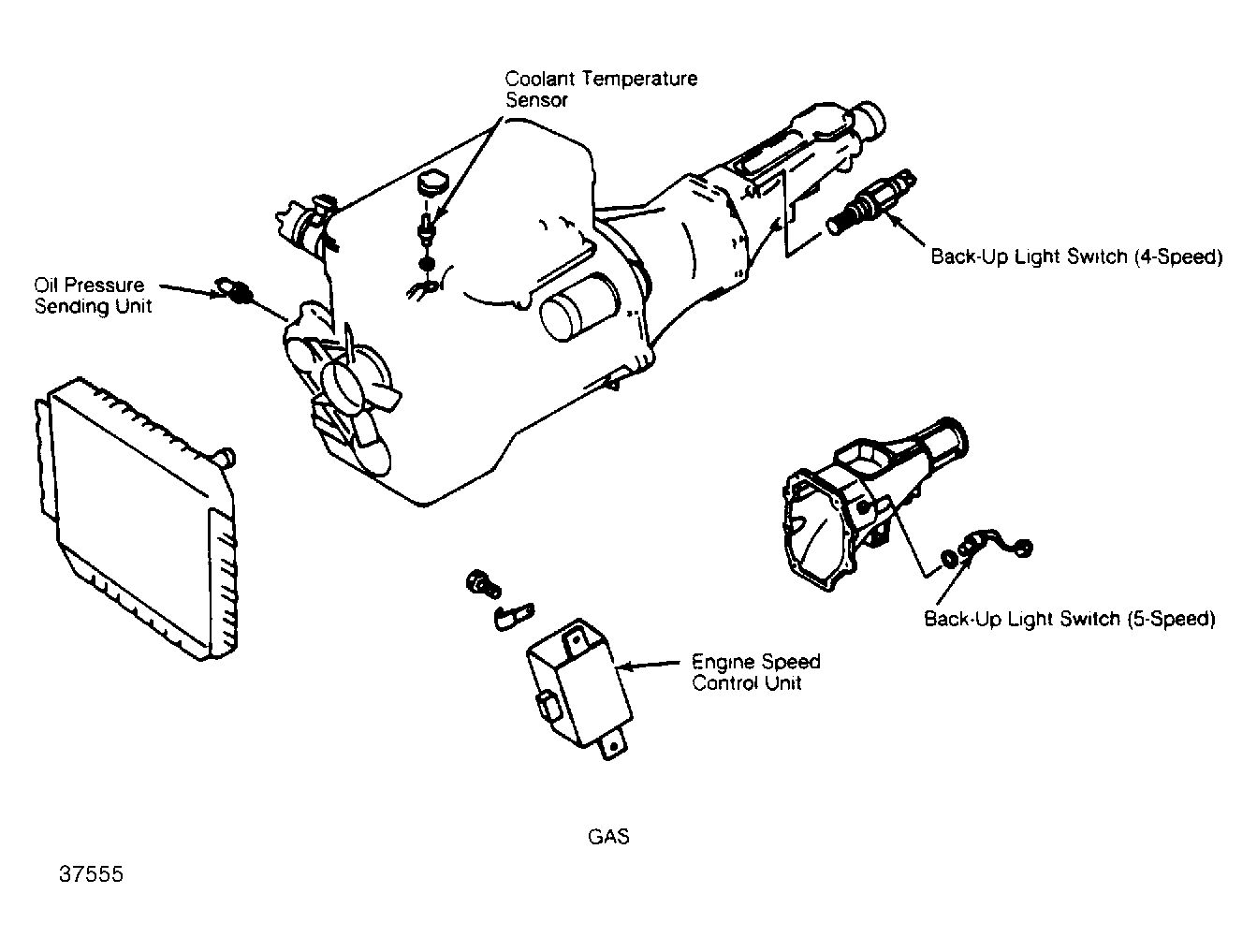

Engine Speed Control Unit (Gas) On left kick panel. See Figure & Figure .

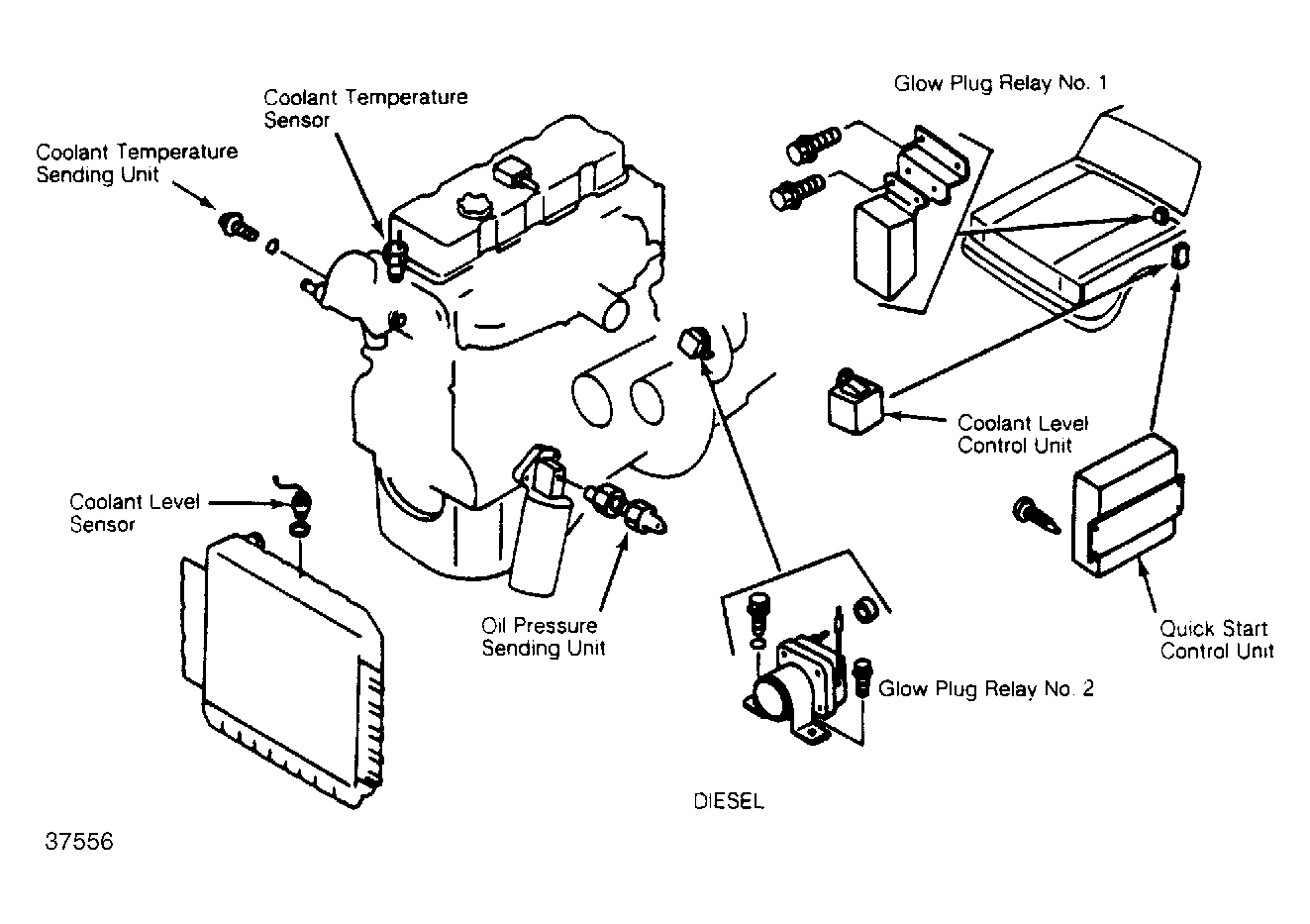

Quick Start Control Unit (Diesel) On left kick panel. See Figure & Figure .
