Spark Plugs

SPARK PLUG TYPE

Application Nippondenso No. NGK No.
All Models W25EDR14 BR8EQ14
SPARK PLUG SPECIFICATIONS

(1) Gap: In. (mm) Torque: Ft. Lbs. (N.m)
0.055 (1.4) 11 (15)
(1) See Fig 1 .

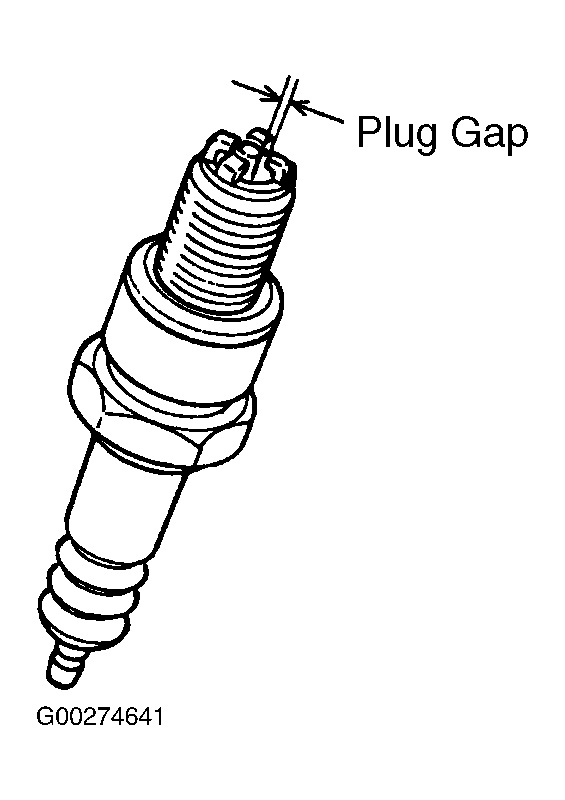

Fig 1: Identifying Spark Plug Gap
G00274641Courtesy of MAZDA MOTORS CORP.
