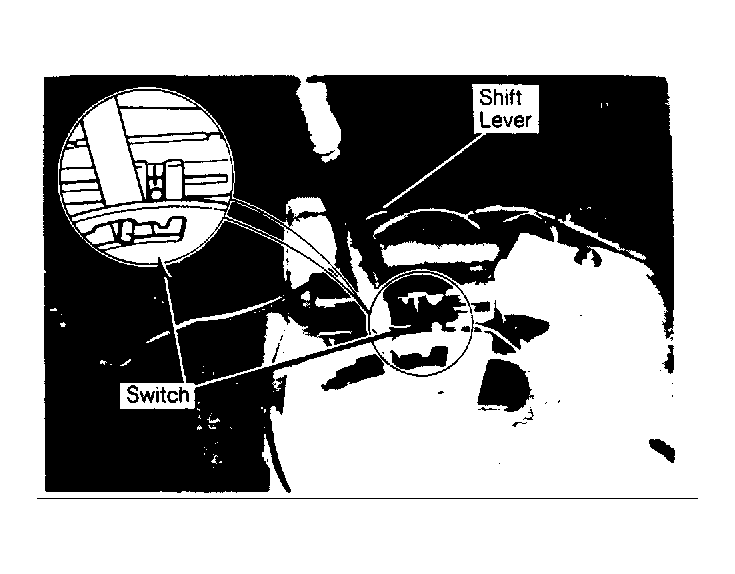

Neutral Safety Switch
- After checking and adjusting shift linkage, place the transmission lever in the "N" position.
- Loosen safety switch retaining bolts. Remove screw from alignment pin hole at bottom of switch.
- Rotate switch and insert a .078" (2 mm) diameter alignment pin through the alignment hole and into hole of internal rotor. Tighten switch retaining bolts and remove alignment pin.
- Reinstall alignment pin hole screw. Check operation of switch. The engine should only start in "N" or "P" position.
