Electrical Component Locator: Relays

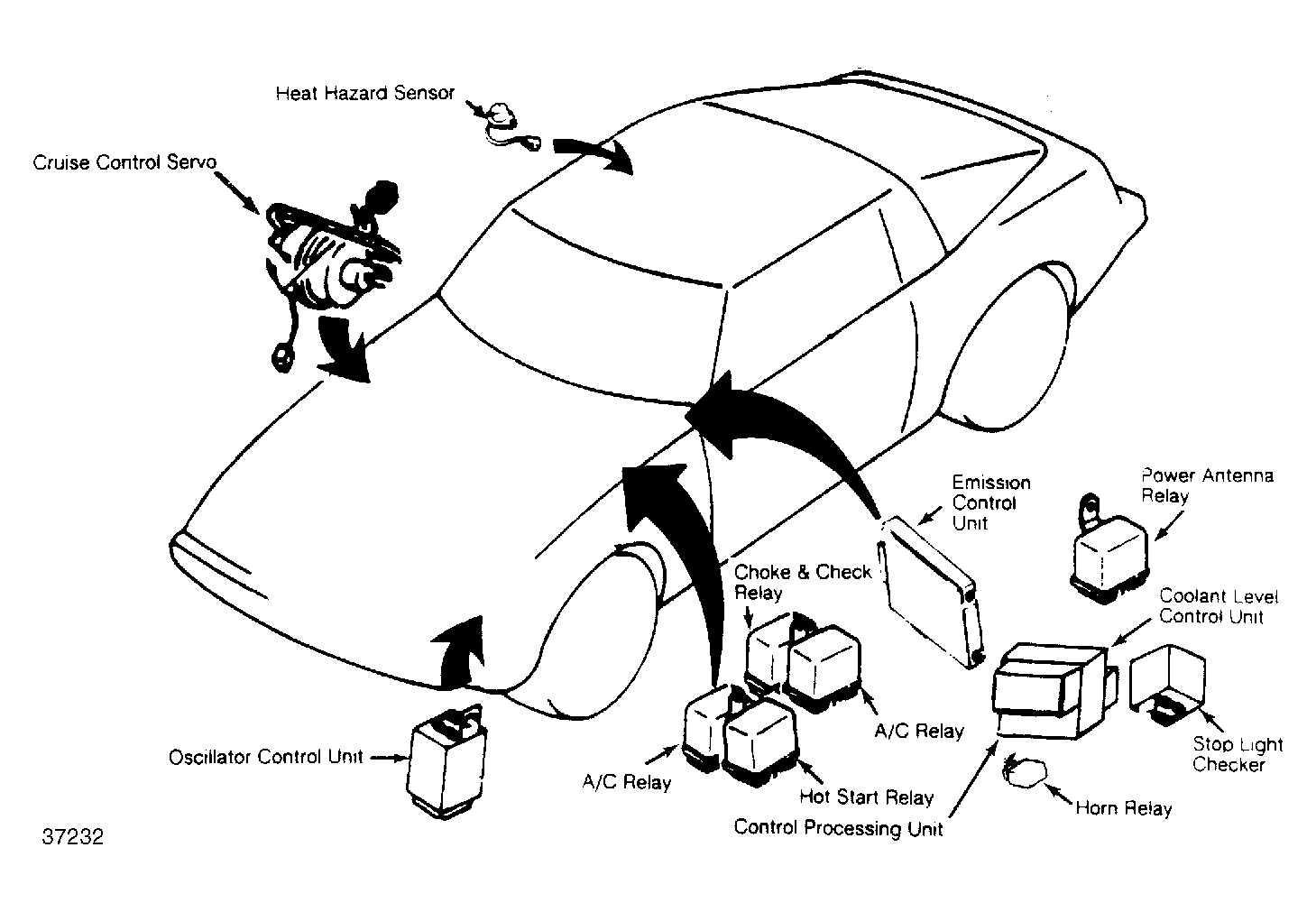

RELAYS LOCATION

Component Location
A/C Relays (2) In left rear corner of engine compartment. See Figure .
Choke & Check Relay In left rear corner of engine compartment. See Figure .
Horn Relay At left kick panel. See Figure .
Hot Start Relay In left rear corner of engine compartment. See Figure .
Power Antenna Relay Under left side of dash. See Figure .
