Choke Unloader

Close choke valve, then fully open primary throttle valve. Measure clearance between air horn and choke valve. Adjust by bending tab shown in Fig 1 .

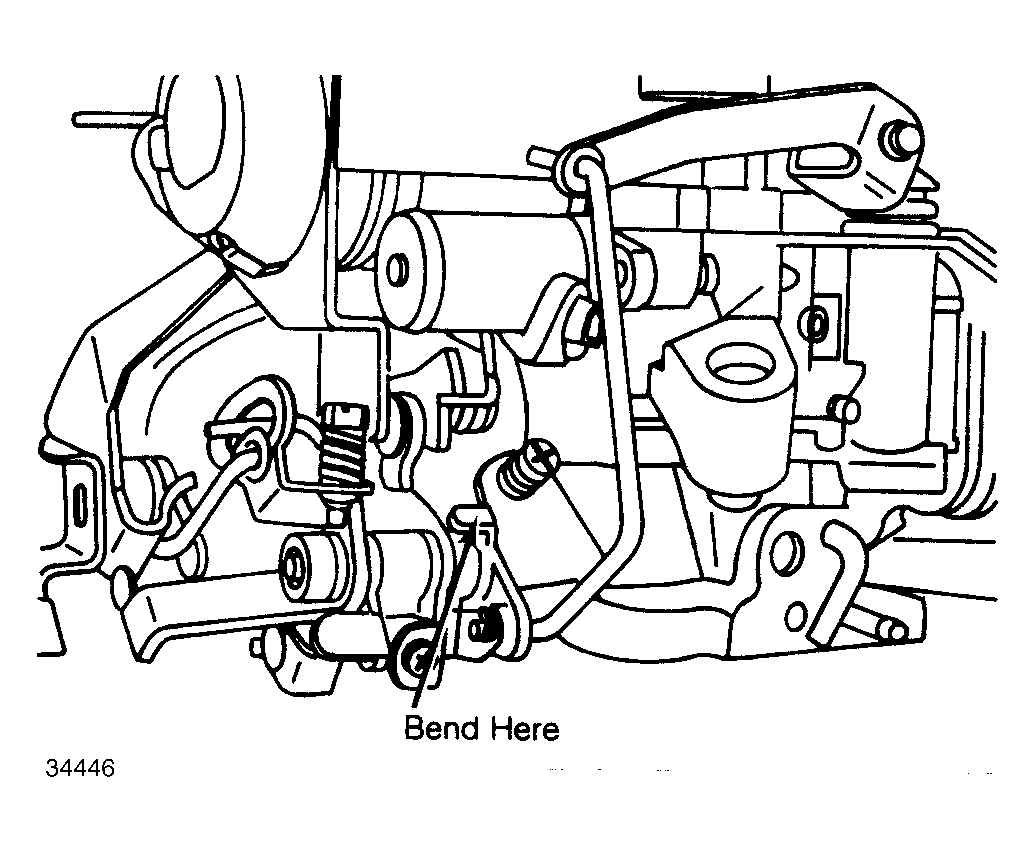

Fig 1: Choke Unloader Adjustment Bend tab to adjust.
G34446
