Alternator & Regulator: Overhaul: Reassembly

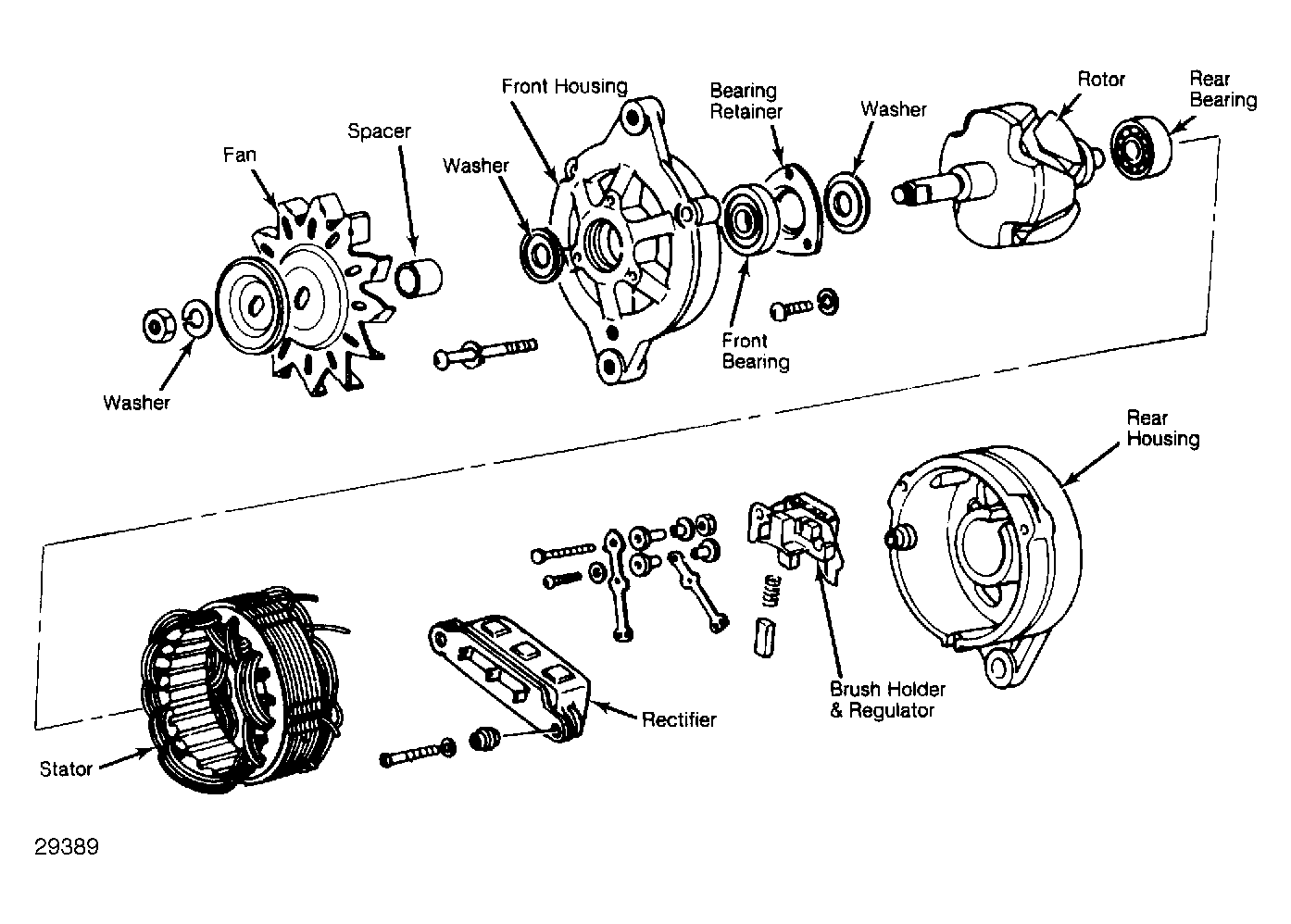

Reassemble by reversing disassembly procedures. Soldering of rectifier leads should be done in less than 5 seconds to prevent damage to diodes. When installing the rotor assembly in the rear housing, hold the brushes in position by inserting a stiff piece of wire into the access hole in rear housing.
