Inspection Procedure
- Warm up the engine to the normal operation temperature and run it at idle.

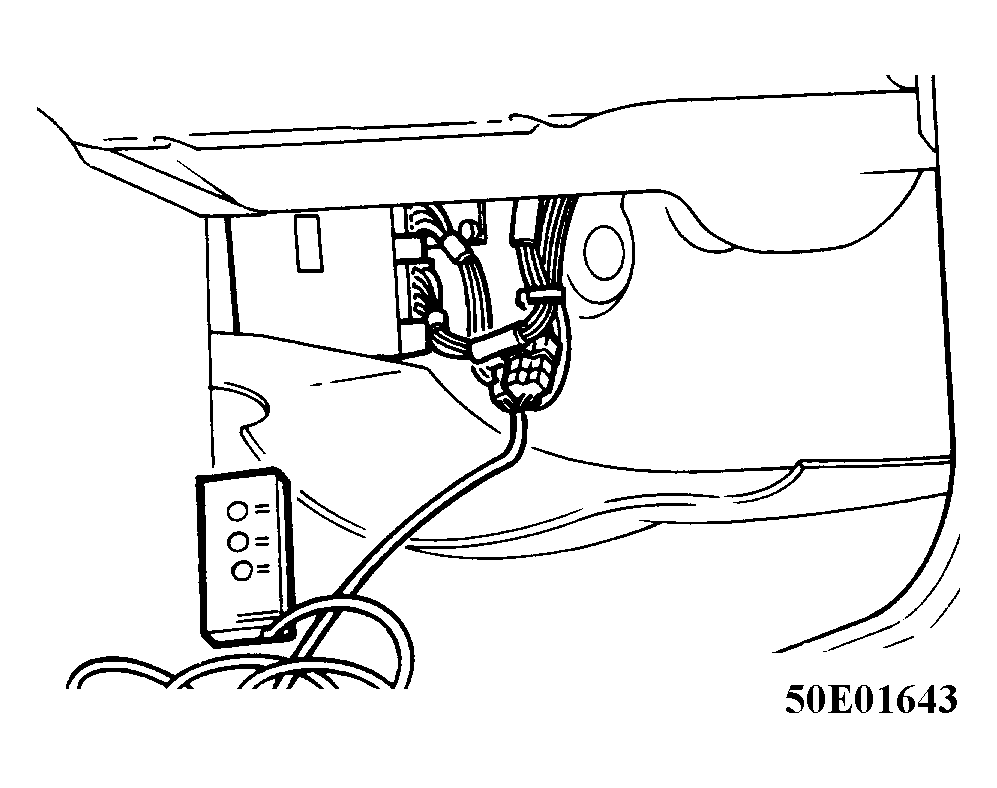

- Connect system checker 83 (49 G030 920 ) to the check connector as shown in Fig 1 .
- Check whether the trouble indication-lamp illuminates.
- If the lamp illuminates, check for cause of problem.
