Float Drop

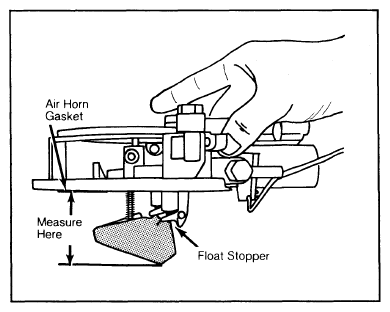

Turn air horn over to its normal position and allow float to lower by its own weight. Measure distance between bottom of float and air horn gasket. See Figure. Distance should be 1.98-2.02" (50.5-51.5 mm). If not, bend float stopper to obtain proper distance.
