Ignition Switch: Removal

  1. Remove steering wheel as previously outlined. Remove column shrouding. Remove combination switch. Disconnect electrical connector.

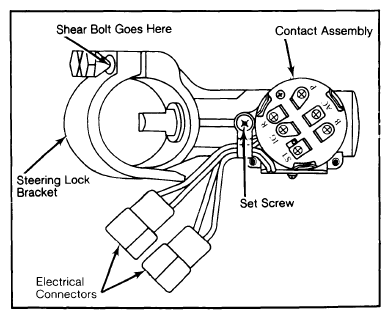

  2. Remove screw attaching switch contact housing to steering lock body and slide out contact housing. See  Figure .
