Magnetic Pick-Up Coil Resistance Test

  1. Turn ignition switch "OFF". Set an ohmmeter in the x100 scale. Attach leads to pick-up coil's distributor connector terminals. See Fig 1.

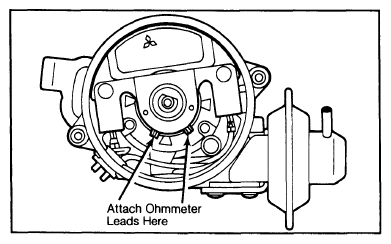

    Fig 1: Checking Pick-Up Coil Resistance
    G09323505Courtesy of NOT AVAILABLE

    Attach ohmmeter leads to points shown.

  2. Compare resistance readings obtained with those given in the table.
    PICK-UP COIL RESISTANCE

    Application Ohms
    Courier (1)
      2000 cc 945-1155
      2300 cc 760-840
    Chrysler Corp. 920-1120
    Mazda 626 and B2000 (1) 945-1155
    (1) Measure resistance at 68°F (20°C).
    NOTE: Specifications for other models are not available from manufacturer.
