Auto Trans.

  1. Apply engine oil to oil seal in rear housing. Fit key to eccentric shaft. Install counterweight to eccentric shaft. Apply sealing agent to lock nut surface that will contact counterweight and install lock nut. Hold counterweight with stopper (49 1881 055) and tighten lock nut. Install drive plate to counterweight so hole in counterweight and drive plate line up.

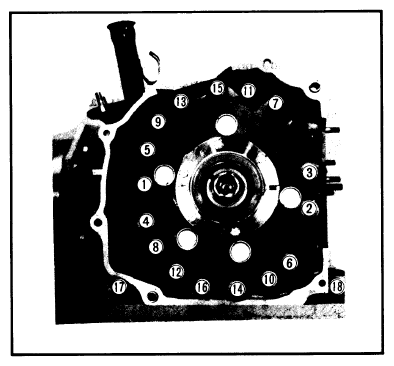

    Fig 1: Tightening Sequence of Tension Bolts
    G09336322Courtesy of MAZDA MOTORS CORP.
