Installing Front Rotor

Mount front housing on engine stand and place front rotor assembly on housing. Use care not to drop seal into port. Mesh internal and stationary gears so that one rotor apex is set to one of 4 positions shown in Fig 2.

Fig 1: Installing Assist Piece on Apex Seal

Courtesy of MAZDA MOTORS CORP.

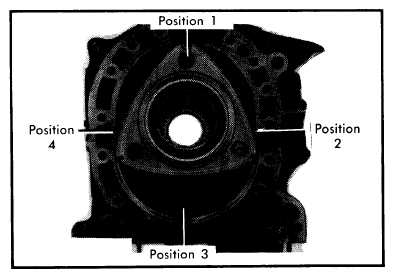

Fig 2: Positioning Rotor Apex for Reassembly

Courtesy of MAZDA MOTORS CORP.
